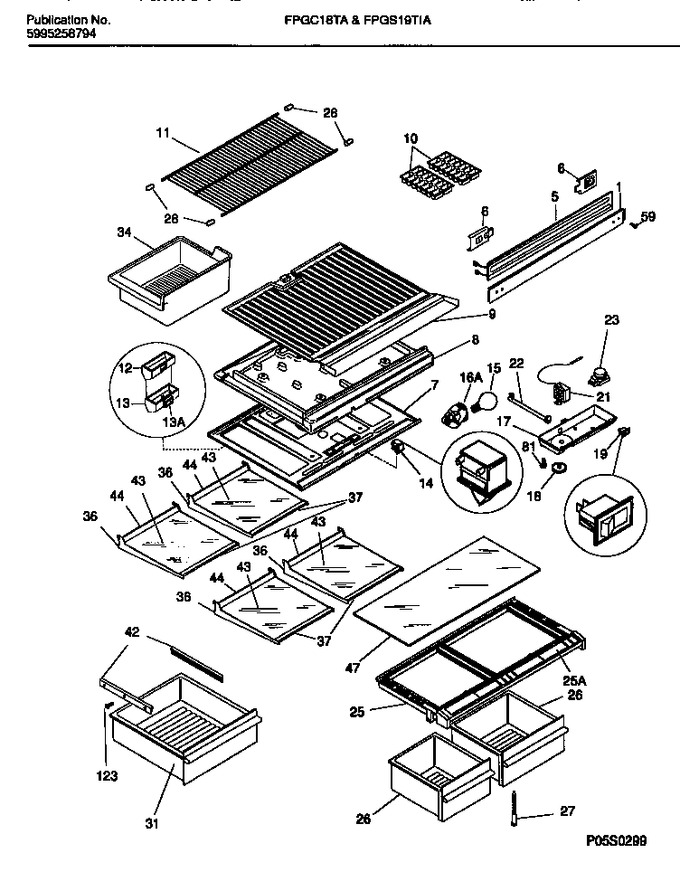

SELECT A DIAGRAM

02 - Door Section


03 - Cabinet With Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


06 - Ice Maker Components And Installati


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218252503		Mullion, White		Appelez-nous	-
5	218271402		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	3018993		Top Panel-refr		Appelez-nous	-
8	3018994		Divider - Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel-frzr		Appelez-nous	-
11	5303283031		Shelf-freezer, Fixed/flat, Full Width, Wire				$ 120.59
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
25	5303206606		Cover-crisper Pan		Appelez-nous	-
26	5303295929		Pan-crisper, 11.34`` Wide		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
31	5303295941		Pan-meat		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
36	215919110		Frame-half Shelf, Cantilever		Appelez-nous	-
37	215919439		Trim-shelf, 12.59``, Front		Appelez-nous	-
42	5303276781		Hanger-pan/tray, Rh				$ 59.17
43	5303299899		Glass-shelf, 12.55`` X 14.57``		Appelez-nous	-
44	215919810		Trim-shelf, 12.59``, Rear		Appelez-nous	-
47	5303209283		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
12A	5303001449		Seal-air Deflector (incl. In Item 12)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
25A	5303280075		Trim-crisper Cover		Appelez-nous	-
26A	5303295931		Pan-crisper, 14.34`` Wide		Appelez-nous	-
42A	5303276782		Hanger-pan/tray, Lh				$ 107.84
7A	5303001380		Screw		Appelez-nous	-
8A	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
8B	3205266		Protector-edge				$ 80.09
