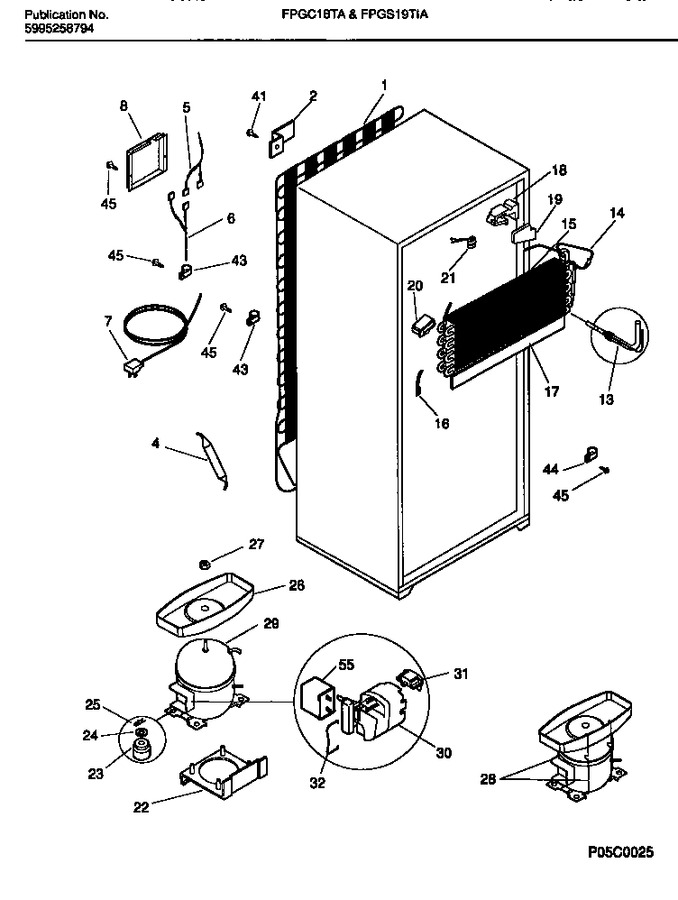

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300163133 | Condenser |
|
- | |||||
| 2 | 5308000296 | Bracket-mounting, Condenser, (4) |
|
$ 30.20 | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 5 | 3018900 | Harness-wiring, Control/divider |
|
- | |||||
| 6 | 215257001 | Harness-wiring, Compressor |
|
- | |||||
| 7 | 5316254901 | Cord-electric Power |
|
- | |||||
| 8 | 5303001197 | Cover-wiring |
|
- | |||||
| 13 | 5308000728 | Heat Exchanger, Suction Line |
|
- | |||||
| 14 | 5317842502 | Heater-defrost |
|
$ 133.96 | |||||
| 15 | 5303271578 | Evaporator |
|
- | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum |
|
Immediately | $ 59.82 | ||||
| 17 | 5316651102 | Insulator-evap, Plastic |
|
$ 53.04 | |||||
| 18 | 5308013648 | Insulation Block, Rh |
|
- | |||||
| 19 | 5303007287 | Insulation Plug, Rh |
|
- | |||||
| 20 | 5308017227 | Insulation Block, Lh |
|
- | |||||
| 21 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 22 | 5308013663 | Plate-compr Mtg |
|
- | |||||
| 23 | 218254500 | Grommet-compr Mtg, (4) |
|
- | |||||
| 24 | 5308003633 | Washer-compr Mtg |
|
$ 35.67 | |||||
| 25 | 5308003596 | Clip - Compressor Mtg |
|
$ 6.62 | |||||
| 26 | 5300184715 | Pan-defrost Drain, Orig/svce Compr |
|
- | |||||
| 27 | 5303001348 | Nut,lock `1/4-20 ,drain Pan Mtg |
|
$ 2.73 | |||||
| 28 | 5303916001 | Pan Retainer Kit, Service |
|
$ 78.75 | |||||
| 29 | 5303925125 | Compresor Only, W/o Electricals |
|
- | |||||
| 30 | 216008900 | Starter-ptc |
|
- | |||||
| 31 | 5303276514 | Overload |
|
$ 64.94 | |||||
| 32 | 215012000 | Wire-bale |
|
$ 2.63 | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 44 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 55 | 5304464438 | Capacitor-run (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| *50444 | 5300189383 | Hot Tube Repair Kit-service |
|
$ 613.15 | |||||
| 1A | 5303017691 | Spacer-tube (non-illustrated) |
|
$ 64.91 | |||||
| 26A | 5308017610 | Sound Tape-dfr Pan (incl. In Item 26) (non-illustrated) |
|
- | |||||
| 2A | 5308009617 | Washer, Ext Tooth Lock, No. 10 (non-illustrated) |
|
- | |||||
| 45A | 5300141713 | Screw-clamp Mtg, Hex Washer Head, 8-32 X 5/8, Special |
|
- |
