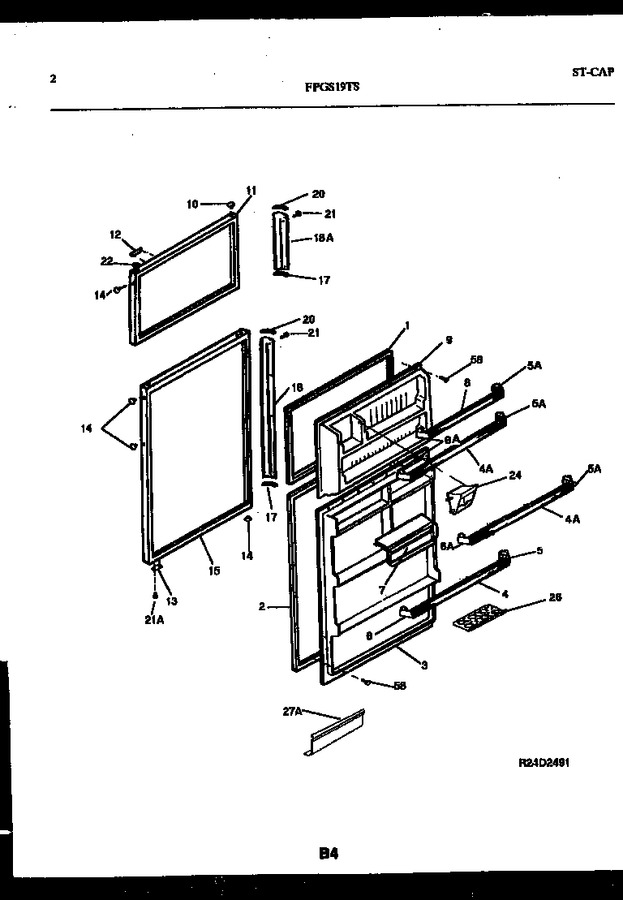

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276826 | Gasket-frzr Door, Magnetic, Almond |
|
$ 115.08 | |||||
| 2 | 5303275772 | Gasket-refr Door, Magnetic, Almond |
|
- | |||||
| 3 | 215132101 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303289009 | Rack-door |
|
- | |||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 5303288979 | Door-dairy, (2) |
|
- | |||||
| 8 | 215139810 | Rack-door |
|
- | |||||
| 9 | 3202033 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5308009933 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 5303275752 | Nameplate Assy, Almond |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5308009930 | Panel-refr Door, Almond |
|
- | |||||
| 17 | 5308010238 | Handle End |
|
- | |||||
| 18 | 215271611 | Handle-door, Full-length, Almond, W/ Trim, End Caps |
|
- | |||||
| 20 | 5308010239 | Handle End |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 18A | 215271911 | Handle-door, Almond |
|
- | |||||
| 4A | 215139809 | Rack-door, (2) |
|
- | |||||
| 5A | 5317828701 | Support-door Rack, Rh, (3) |
|
$ 8.18 | |||||
| 6A | 5317828401 | Support-door Rack, Lh, (3) |
|
$ 11.48 |
