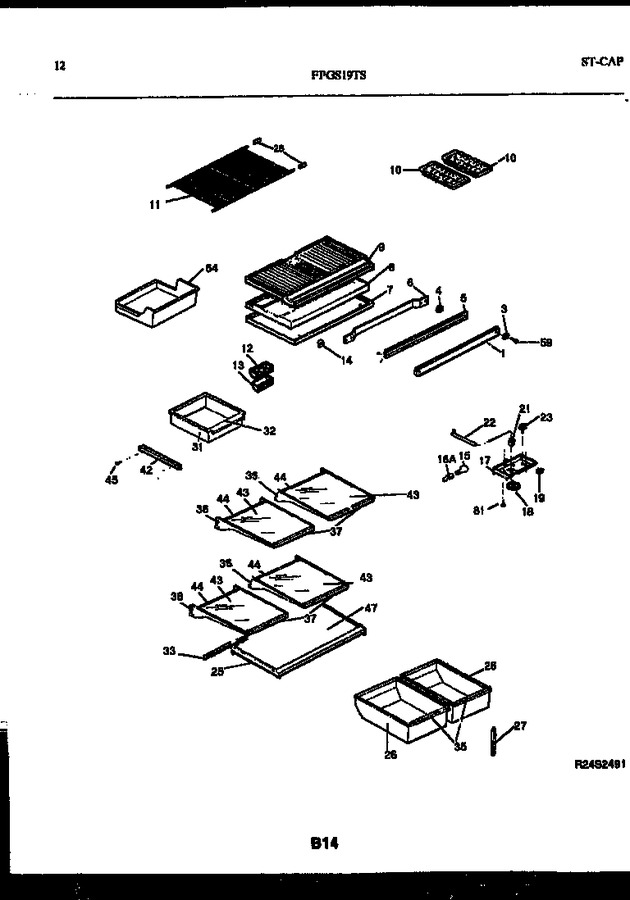

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 31 | 5303286899 | Pan-meat, Warm Gray |
|
- | |||||
| 32 | 5303279439 | Trim-meat Pan |
|
- | |||||
| 33 | 5303200329 | Gasket-crisper Cvr, 13.25`` |
|
- | |||||
| 35 | 5303282659 | Trim-crisper Pan, Rh |
|
- | |||||
| 35 | 5303275758 | Trim-crisper Pan, Lh |
|
- | |||||
| 36 | 215069001 | Frame-half Shelf, (4) |
|
- | |||||
| 37 | 5303275678 | Trim-half Shelf, Front, (4) |
|
- | |||||
| 42 | 5303209272 | Hanger, Meat Pan/tray, Lh |
|
$ 90.83 | |||||
| 43 | 5303211967 | Shelf-glass, Half Shelf, (4) |
|
- | |||||
| 44 | 5303211828 | Trim-half Shelf, Rear, (4) |
|
- | |||||
| 45 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| 47 | 5303211968 | Insert, Crisper Cvr, Glass |
|
- | |||||
| 54 | 5303288235 | Container-ice |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *64200 | 5300170910 | Clip-cantilevr Shlf |
|
$ 2.60 | |||||
| 37A | 5303209263 | Retainer-glass (non-illustrated) |
|
- | |||||
| 42A | 5303209273 | Hanger, Meat Pan/tray, Rh (non-illustrated) |
|
$ 60.06 | |||||
| 44A | 5303211351 | Lock-rear Trim (non-illustrated) |
|
- |
