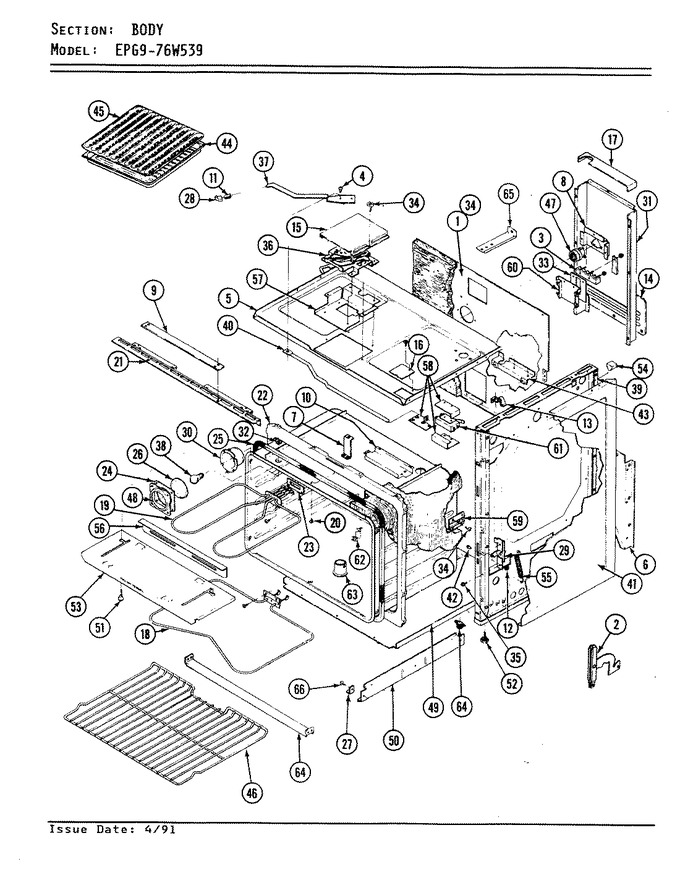

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
1	4002F108-80		Back, Main	1	Appelez-nous	-
2	3420A033-34		Stop, Oven Door	1	Appelez-nous	-
3	WPW10245259		Block, Terminal   (Replaces: 7401P002-60)	1		Immediately	$ 31.65
4	7116P003-60		Bolt	1	Appelez-nous	-
4	WP4159193		Screw   (Replaces: 7101P018-60)	1			$ 4.29
5	4011F180-19		Bottom Burner Box	1	Appelez-nous	-
6	3802F008-80		Brace, Back-left	1	Appelez-nous	-
6	3802F010-80		Brace, Back-right	1	Appelez-nous	-
7	3801F093-45		Bracket, Burner Box	1	Appelez-nous	-
8	3801F024-51		Bracket	1	Appelez-nous	-
9	3801F125-80		Bracket, Main Top Retainer	1	Appelez-nous	-
10	3818F027-45		Channel, Switch	1	Appelez-nous	-
11	7112P003-60		Clip, Latch Handle	1	Appelez-nous	-
12	7112P019-60		Clip, Hinge Pin	1	Appelez-nous	-
13	7112P073-60		Clip, Top Retainer	1	Appelez-nous	-
14	4005F362-51		Cover Access	1	Appelez-nous	-
15	4005F137-80		Cover, Catch Assy.	1	Appelez-nous	-
16	4005F139-51		Cover, Switch	1	Appelez-nous	-
17	4005F182-80		Cover, Wire Housing	1	Appelez-nous	-
18	WPY04000041		Element, Bake   (Replaces: 7406P067-60)	48			$ 133.20
18	WPY04000041		Element,bake   (Replaces: 7406P010-60)	1			$ 133.20
19	8004P013-60		Clip, Broil Element Support	1	Appelez-nous	-
19	WPY04000048		Element,broil   (Replaces: 7406P003-60)	1			$ 160.58
19	WPY04000048		Element, Broil   (Replaces: 7406P076-60)	57			$ 160.58
19	WP7101P126-60		Screw   (Replaces: 7101P064-60)	1		Immediately	$ 6.85
19	7101P287-60		Screw, Metal Grounding	1			$ 12.03
20	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	1			$ 6.47
21	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
21	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	1			$ 15.94
21	4012F017-80		Front, Burner Box Bottom	1	Appelez-nous	-
22	W10124350		Not Required Part Or See Note	1	Appelez-nous	-
23	7201P003-60		Gasket, Element	1	Appelez-nous	-
24	7201P015-60		Gasket, Lamp Retainer	1	Appelez-nous	-
25	7201P036-60		Gasket, Oven	1			$ 118.90
26	7902P057-60		Glass, Lamp Guard	1	Appelez-nous	-
27	8016P005-60		Glide, Front	1	Appelez-nous	-
28	7701P088-60		Handle, Latch (blk)	1	Appelez-nous	-
29	3418A029-34		Hinge Assy. (lt)	1			$ 48.47
29	8016P008-60		Glide, Oven Door Hinge	1	Appelez-nous	-
29	3418A030-34		Hinge Assy. (rt)	1	Appelez-nous	-
30	7201P014-60		Gasket, Housing	1	Appelez-nous	-
30	4001F020-23		Housing, Lamp	1	Appelez-nous	-
32	WP488130		Nut, Keps Black   (Replaces: 7103P062-60)	1			$ 6.27
33	7003P018-60		Insulation, Term Bd	1	Appelez-nous	-
34	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
35	WP4159193		Screw   (Replaces: 7101P112-60)	1			$ 4.29
36	8002P020-60		Catch Assy.	1	Appelez-nous	-
36	3604F159-45		Shield Insulation, Catch	34	Appelez-nous	-
36	7002P048-60		Insulation, Door Lock	1	Appelez-nous	-
37	8009P018-60		Lever, Door Lock	54	Appelez-nous	-
37	8009P009-60		Lever, Door Lock	1	Appelez-nous	-
38	40A15		Bulb, Oven   (Replaces: 7407P026-60)	1		Immediately	$ 1.98
39	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
39	4009W053-80		Lining, Inner Side	1	Appelez-nous	-
39	7103P045-60		Nut, Nylon	1	Appelez-nous	-
39	7107P017-60		Rivet	1	Appelez-nous	-
40	7807P012-60		Link, Door Lock	54	Appelez-nous	-
40	7807P004-60		Link, Switch	1	Appelez-nous	-
41	2618F073-71		Panel, Side (wht)----na	1	Appelez-nous	-
41	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
42	7113P002-60		Pin, Hinge	1			$ 9.05
43	3605F146-51		Plate, Conduit Reinforcement	1			$ 6.06
43	3605F156-51		Plate,conduit	1	Appelez-nous	-
44	4396923		Pan, Broil   (Replaces: 3401F004-23)	1		Immediately	$ 52.04
45	3413F002-23		Insert, Broil Pan	1	Appelez-nous	-
46	7801P030-60		Rack, Oven	1			$ 57.14
47	3604F007-80		Shield, Light Receptacle	1	Appelez-nous	-
47	7408P002-60		Receptacle, Lamp	1	Appelez-nous	-
48	WP7101P126-60		Screw   (Replaces: 7101P064-60)	1		Immediately	$ 6.85
48	3804F012-45		Retainer, Lamp Guard	1	Appelez-nous	-
49	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
49	3804F102-80		Retainer, Bottom Insulation	1	Appelez-nous	-
50	3406F027-51		Runner, Outer	1	Appelez-nous	-
51	7118P001-60		Screw, Broil Shield	1	Appelez-nous	-
52	Y7101P25460		Leg, Leveling	1	Appelez-nous	-
53	3604F092-45		Shield, Broil	1	Appelez-nous	-
54	8003P011-60		Spacer, Main Top	1	Appelez-nous	-
55	WP7803P058-60		Spring, Oven Door   (Replaces: 7803P058-60)	1			$ 16.55
56	3807F176-15		Support, Broil Element	1	Appelez-nous	-
57	3807F195-45		Support, Catch Assy.	1	Appelez-nous	-
57	3807F408-45		Support, Catch Assy.	41	Appelez-nous	-
58	3807F193-45		Support, Lock Switch	1	Appelez-nous	-
59	3807F205-45		Support, Oven Rear	1	Appelez-nous	-
60	3807F157-60		Support, Terminal Block	1	Appelez-nous	-
61	7003P019-60		Insulation, Switch (upper)	1	Appelez-nous	-
61	7101P031-60		Screw	1	Appelez-nous	-
61	7403P045-60		Switch, Door Lock	1	Appelez-nous	-
61	7003P039-60		Insulation, Switch	1	Appelez-nous	-
62	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	1		Immediately	$ 11.07
63	8026A007-60		Tube, Vent	1	Appelez-nous	-
64	3802F076-51		Brace, Inner Side	1	Appelez-nous	-
65	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)	49		Immediately	$ 4.69
65	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)	49			$ 26.33
65	3801F198-51		Bracket, Tie-down	1	Appelez-nous	-
66	7101P013-60		Screw, Special	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
