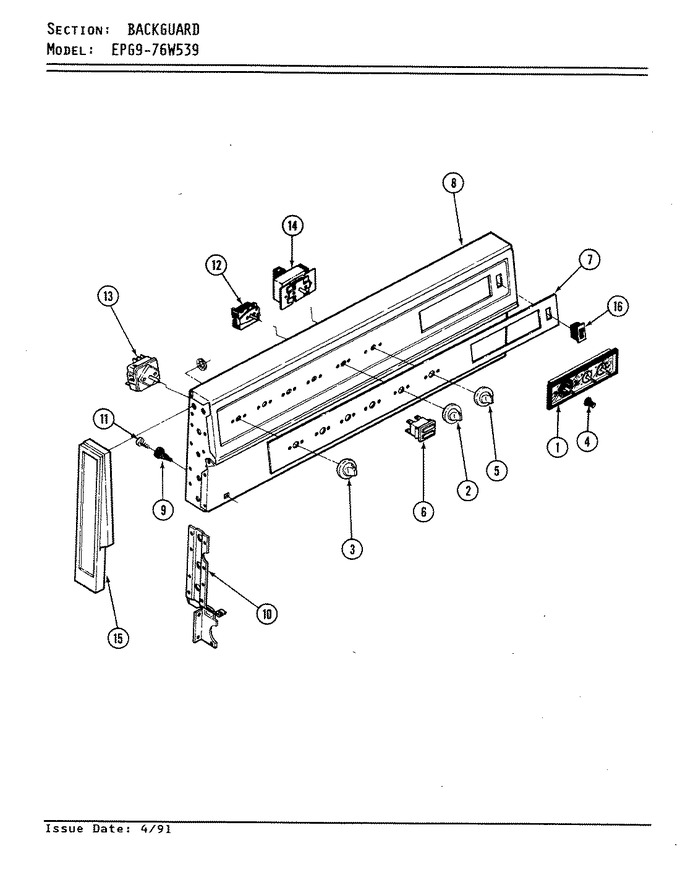

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P186-60 | Clock | 48 |
|
- | ||||
| 1 | 7601P065-60 | Clock | 1 |
|
- | ||||
| 2 | 7711P347-60 | Knob, Selector | 1 |
|
- | ||||
| 3 | 7711P346-60 | Knob, Infinite | 1 |
|
- | ||||
| 4 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 5 | 7711P348-60 | Knob, Thermostat | 1 |
|
- | ||||
| 6 | 7407P067-60 | Light, Signal | 1 |
|
- | ||||
| 7 | 7703P263-60 | Trim, Backguard | 1 |
|
- | ||||
| 8 | 2601W338-71 | Panel, Backguard (wht) | 50 |
|
- | ||||
| 8 | 2601W338-81 | Backguard Assy | 1 |
|
- | ||||
| 8 | 4005F004-80 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 9 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 10 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 10 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 10 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 11 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 12 | 7101P280-60 | Screw W/washer (blk) | 1 |
|
- | ||||
| 12 | 7403P037-60 | Switch, Selector | 1 |
|
- | ||||
| 13 | W11122006 | Switch, Inf. 250v (Replaces: 7403P181-60) | 1 |
|
$ 145.12 | ||||
| 13 | 7101P280-60 | Screw W/washer (blk) | 1 |
|
- | ||||
| 13 | WP7403P238-60 | Switch, Infinite (1400w) (Replaces: 7403P262-60) | 55 |
|
Immediately | $ 57.78 | |||
| 13 | 7403P263-60 | Switch, Infinite (2400w) | 55 |
|
- | ||||
| 14 | 7404P050-60 | Thermostat | 1 |
|
- | ||||
| 14 | 7101P279-60 | Screw W/washer | 1 |
|
- | ||||
| 15 | 7726P021-60 | End Cap, Backguard (rt-chr) | 1 |
|
- | ||||
| 15 | 7726P010-60 | End Cap, Backguard (lt-chr) | 1 |
|
- | ||||
| 15 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 16 | 7403P067-60 | Switch, Rocker (blk) | 1 |
|
$ 91.35 | ||||
| 17 | 8112P076-60 | Manual, Use & Care | 1 |
|
- |
