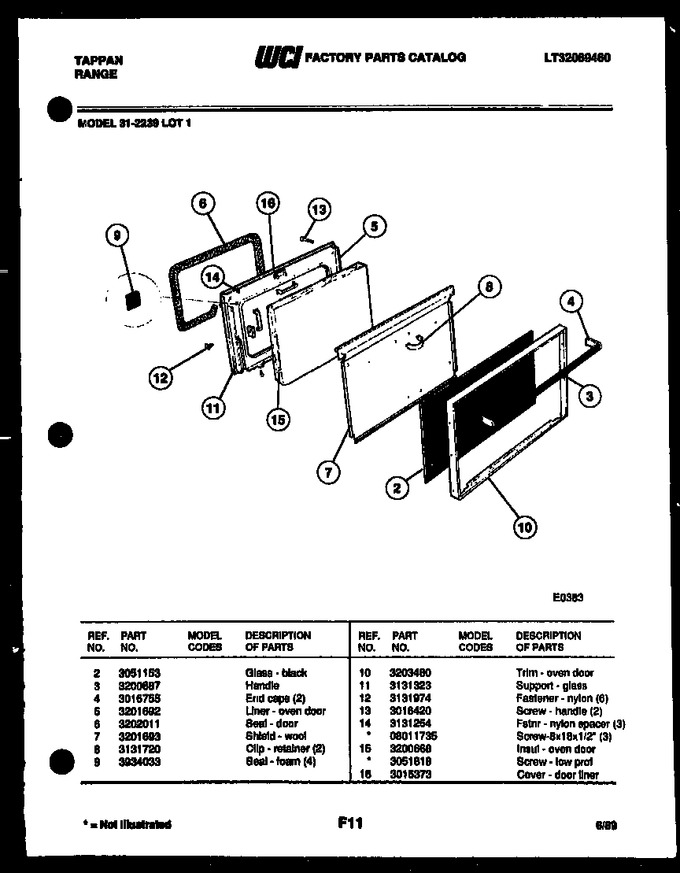

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3051153		Glass-black		Appelez-nous	-
3	3200887		Handle		Appelez-nous	-
4	3016755		End Caps (2)		Appelez-nous	-
5	3201692		Liner, Oven Door		Appelez-nous	-
6	3202011		Seal-door		Appelez-nous	-
7	3201693		Shield, Wool		Appelez-nous	-
8	3131720		Clip, Retainer (2)		Appelez-nous	-
9	3934033		Seal, Foam (4)		Appelez-nous	-
10	3203480		Trim, Oven Door		Appelez-nous	-
11	3131323		Support, Glass		Appelez-nous	-
12	3131974		Fastener, Nylon (6)		Appelez-nous	-
13	3016420		Screw - Handle (2)		Appelez-nous	-
14	3131254		Fstnr-nylon Spacer (3)		Appelez-nous	-
15	3200668		Insul - Oven Door		Appelez-nous	-
16	3015373		Cover-door Liner		Appelez-nous	-
14A	08011735		Screw-8 X 18 X 1/2`` (3) (non-illustrated)		Appelez-nous	-
15A	3051818		Screw - Low Prof (non-illustrated)		Appelez-nous	-
