SELECT A DIAGRAM

02 - Backguard


03 - Door Parts


04 - Body Parts


05 - Drawer Parts


06 - Broiler Parts


07 - Cooktop Parts

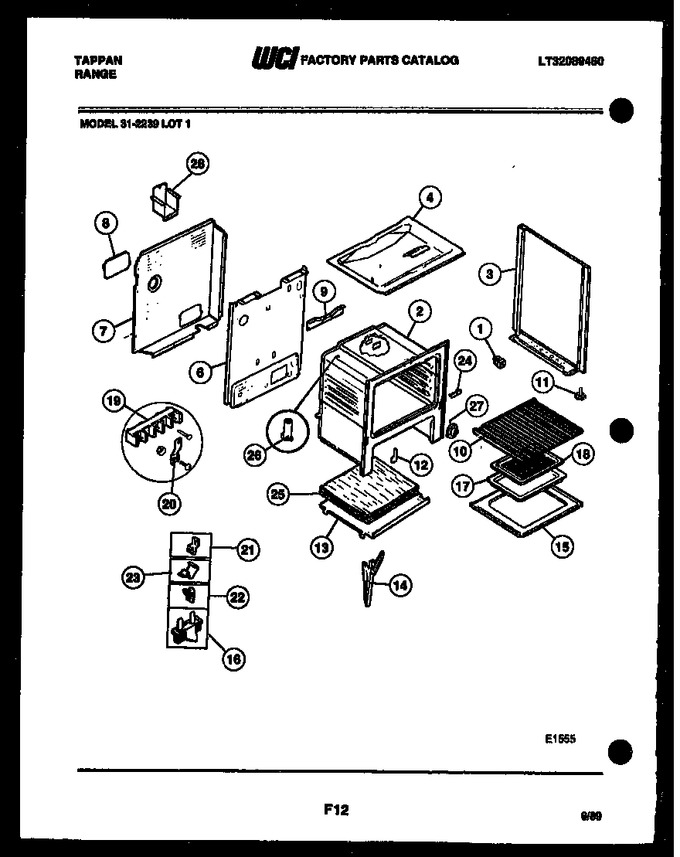

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	3200792		Panel-side Lh (white)		Appelez-nous	-
4	3017926		Burner Box		Appelez-nous	-
6	3203082		Back-main		Appelez-nous	-
7	3203549		Shield-low Wall		Appelez-nous	-
8	3203405		Cover-low Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	3131973		Rack, Oven (2)		Appelez-nous	-
11	3203397		Screw, Level (4)		Appelez-nous	-
12	3131570		Cover-hinge (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	3131569		Channel - Hinge (2)		Appelez-nous	-
15	3203540		Bottom Oven		Appelez-nous	-
16	3051147		Fuse-thermal		Appelez-nous	-
17	3013568		Broiler Pan		Appelez-nous	-
18	3131356		Insert, Broiler Pan		Appelez-nous	-
19	3161116		Terminal Block		Appelez-nous	-
20	08011708		Ground Strap		Appelez-nous	-
21	3011805		Clip - Thermal (2)		Appelez-nous	-
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	3015372		Cover - Front		Appelez-nous	-
25	3051390		Insulation-bottom		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3051218		Plate,oven Light		Appelez-nous	-
28	3203582		Shield-rear Wall		Appelez-nous	-
*25330	3204525		Bracket-cable Mtg		Appelez-nous	-
*25330	3934056		Anti-tip Kit		Appelez-nous	-
*25330	08067783		Nut - Hex Brass (6)		Appelez-nous	-
*25330	3131143		Screw - Hinge (6)		Appelez-nous	-
*25330	3131903		Bumper				$ 55.36
*25330	3203541		Insulation-back		Appelez-nous	-
*25330	3017142		Insulation-wrap				$ 193.50
*25331	3203550		Plug-button (2)			Immediately	$ 15.22
3A	3200789		Panel-side Rh (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
