01 - Body
02 - Door/drawer

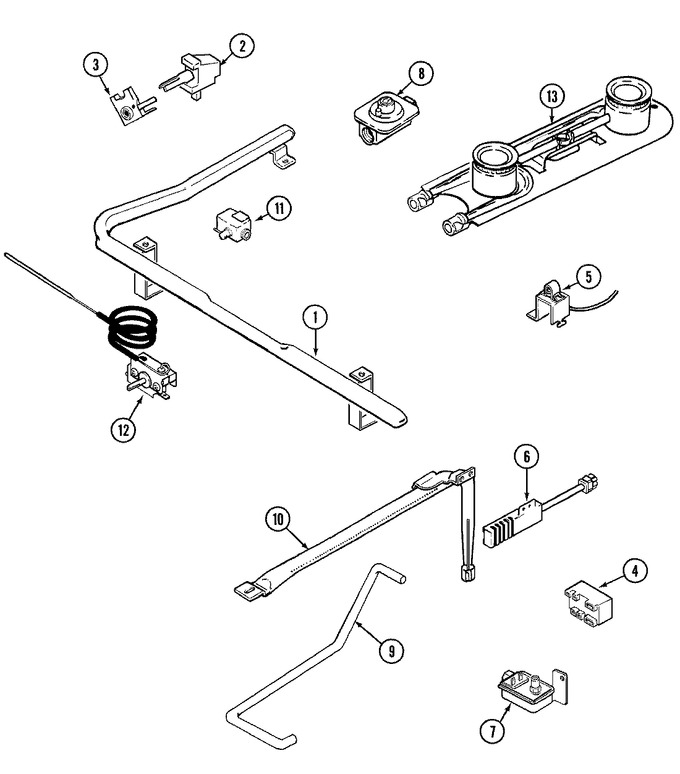

03 - Gas Controls
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | 7513P159-60 | Pipe, Manifold | 10 |
|
- | ||||
| 2 | 7101P044-60 | Screw, Valve | 10 |
|
- | ||||
| 2 | 7502P175-60 | Valve Burner Lp | 10 |
|
- | ||||
| 3 | 7403P284-60 | Switch, Burner | 10 |
|
$ 55.80 | ||||
| 4 | 7431P006-60 | Module, Spark | 10 |
|
- | ||||
| 4 | 3807F432-45 | Support, Spark Module | 10 |
|
- | ||||
| 4 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 7432P008-60 | Igniter, Top (lt) | 10 |
|
- | ||||
| 5 | 7432P031-60 | Igniter, Top (rt) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 12400035 | Igniter, Oven (Replaces: 7432P076-60) | 10 |
|
Immediately | $ 60.44 | |||
| 6 | WP3351614 | Screw (Replaces: 7101P328-60) | 10 |
|
Immediately | $ 6.26 | |||
| 7 | 4005F433-51 | Cover, Valve | 10 |
|
- | ||||
| 7 | 74001754 | Valve, Oven | 10 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 7510P052-60 | Regulator, Pressure | 10 |
|
- | ||||
| 9 | 7103P130-60 | Nut, Loxit (3/8``) | 10 |
|
$ 8.20 | ||||
| 9 | 8312P016-60 | Sealant | 10 |
|
- | ||||
| 9 | 3414F114-44 | Tubing | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 3403D023-45 | Burner, Oven | 10 |
|
- | ||||
| 11 | 7502P002-60 | Valve, Shut Off | 10 |
|
- | ||||
| 12 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 7404P087-60 | Thermostat | 10 |
|
$ 197.47 | ||||
| 12 | 3604F177-51 | Shield, Thermostat | 10 |
|
- | ||||
| 13 | 3412A004-19 | Burner, Top | 10 |
|
- | ||||
| 14 | 5125A312-60 | Harness, Loose/burner Box | 10 |
|
- | ||||
| 14 | 5195D078-60 | Harness, Burner Box | 10 |
|
- | ||||
| 15 | W10841090 | Clamp, Wire (Replaces: 7111P017-60) | 10 |
|
- | ||||
| 15 | 7112P029-60 | Clip | 10 |
|
- |
