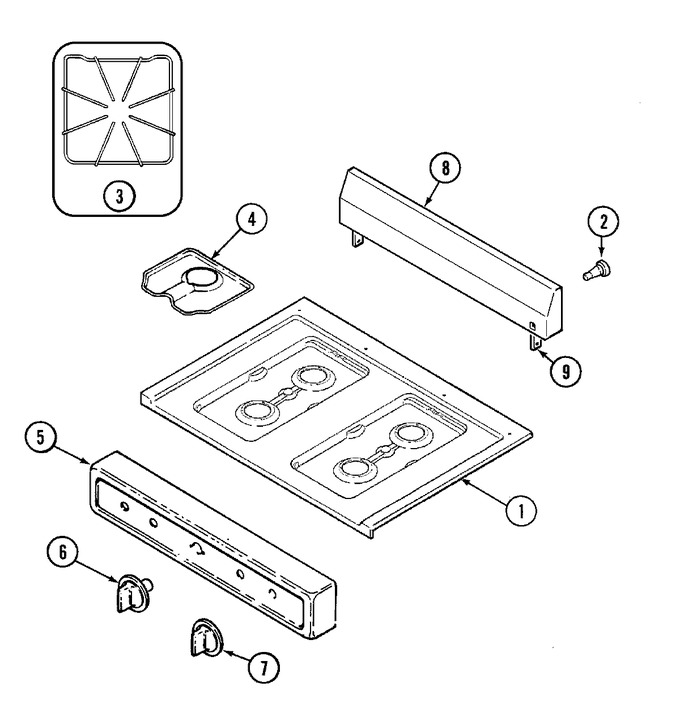

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Gas Controls
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288566 | Top, Main (wht) (Replaces: 2001F098-81) | 10 |
|
$ 2.17 | ||||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 8010P069-60 | Spacer, Hinge (main Top) | 10 |
|
$ 8.57 | ||||
| 3 | 2003W026-00 | Grate (blk) | 10 |
|
- | ||||
| 4 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 10 |
|
$ 95.86 | ||||
| 5 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 5 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 5 | 2616F085-09 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 6 | 7731P085-60 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| 7 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P062-60) | 10 |
|
$ 25.06 | ||||
| 8 | 2601W349-09 | Backguard | 10 |
|
- | ||||
| 9 | 3801F242-51 | Bracket, Control Panel (rt) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 3801F243-51 | Bracket, Control Panel (lt) | 10 |
|
- | ||||
| 10 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- | ||||
| 10 | 8113P042-60 | Manual, Use & Care | 10 |
|
- |
