View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:

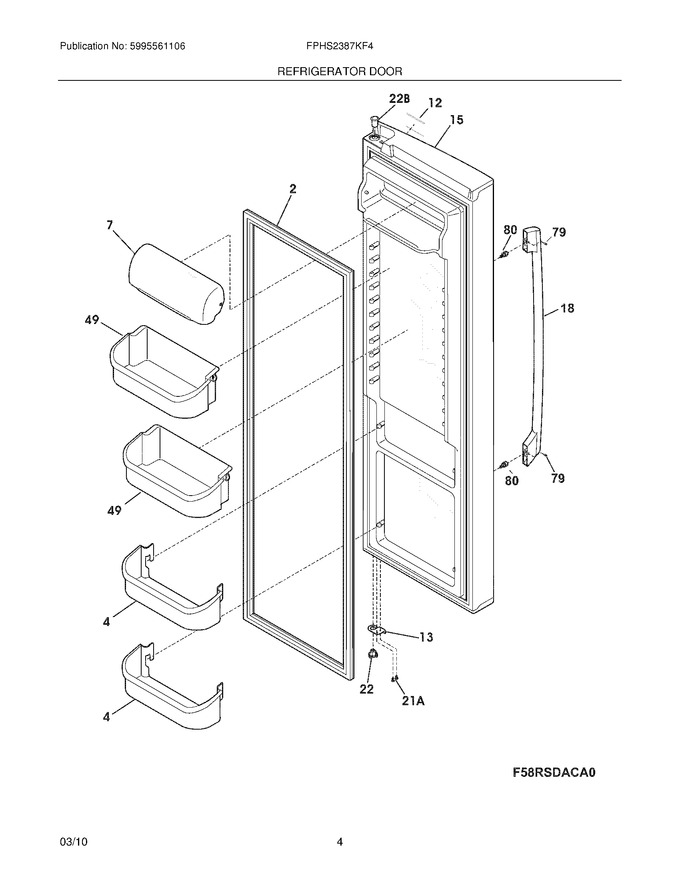

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refr Door,white ,magnetic (Replaces: 241786003) |
|
Immediately | $ 94.66 | ||||
| 4 | 240363702 | Bin-door,2-liter |
|
Immediately | $ 76.40 | ||||
| 7 | 240338313 | Door,dairy ,clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 12 | 242015101 | Label-nameplate |
|
$ 4.55 | |||||
| 13 | 241942603 | Door Stop,black ,ref |
|
$ 20.56 | |||||
| 15 | 241837275 | Door-refr,stainless ,complete Assy |
|
$ 601.13 | |||||
| 18 | 241972501 | Handle-door,stainless |
|
$ 227.22 | |||||
| 22 | 241990301 | Bearing-hinge,gray |
|
$ 7.09 | |||||
| 49 | 240324502 | Bin-door,gallon ,w/trim (Replaces: 241808226) |
|
Immediately | $ 102.61 | ||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760403 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| NI | 241780303 | Liner,bin,bin |
|
$ 56.37 |
