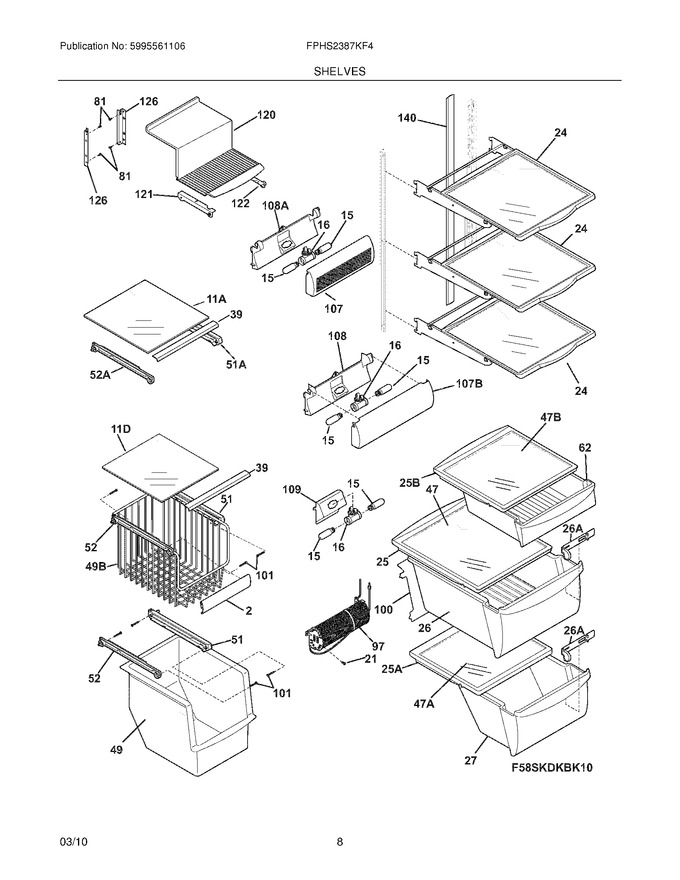

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510609		Trim-basket		Appelez-nous	-
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light,frz Light				$ 65.93
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	240355277		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350142)				$ 213.87
25	241974201		Cover-crisper Pan,upper				$ 94.98
26	240354723		Pan-crisper,upper   (Replaces: 240354727)			Immediately	$ 164.31
27	240354805		Pan-crisper,lower   (Replaces: 240354830)				$ 167.69
39	240367606		Trim-shelf,front				$ 8.28
47	240350613		Insert-pan Cover,glass   (Replaces: 241992910)				$ 123.62
49	240564301		Basket-sliding				$ 131.97
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	241974403		Pan-meat				$ 131.17
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	242220510		Water Tank   (Replaces: 241532007)				$ 119.78
100	240326303		Cover-water Tank				$ 61.28
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241753501		Shield-light,refr				$ 43.89
108	241513301		Cover-wiring,meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241740701		Shelf-ice Cream		Appelez-nous	-
121	241561001		Rail-ice Cream Shelf,lh				$ 101.63
122	241561101		Rail-ice Cream Shelf,rh				$ 78.87
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	241812501		Channel,wtr Tube Cover		Appelez-nous	-
11A	241992913		Shelf-freezer,glass ,upper				$ 69.46
11D	241992914		Shelf-freezer,glass ,lower				$ 51.74
25A	241974301		Cover-crisper Pan,lower				$ 88.46
25B	241973101		Cover-meat Pan			Immediately	$ 87.77
26A	240351101		Control-humidity			Immediately	$ 43.95
47A	240350614		Insert-pan Cover,glass				$ 145.60
47B	241992909		Insert-pan Cover,glass				$ 117.66
49B	240530503		Basket-sliding,upper ,full				$ 220.14
51A	240395502		Hanger-basket,rh				$ 73.00
52A	240395602		Hanger-basket,lh				$ 61.66
F107	241947502		Shield-light,meat Pan		Appelez-nous	-
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
FNI	241797601		Harness-wiring		Appelez-nous	-
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	241781601		Seal-return Air				$ 9.10
NI	241868101		Air Guide		Appelez-nous	-
NI	241935560		Energy Guide		Appelez-nous	-
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 31.36
