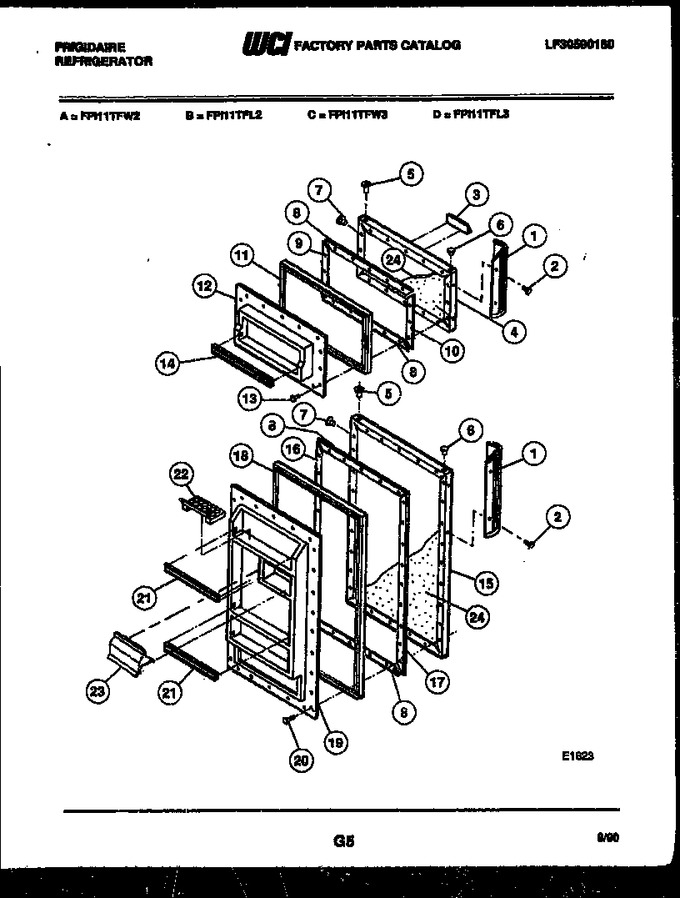

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202073		Handle-almond		Appelez-nous	-
2	3205045		Screw-handle Mtg (4)		Appelez-nous	-
3	3025048		Nameplate		Appelez-nous	-
4	3204693		Panel-ext-white Rh		Appelez-nous	-
4	3202074		Panel-ext-almd Rh		Appelez-nous	-
5	08012007		Bearing-hinge		Appelez-nous	-
6	08011199		Plug-hinge Almd (2)		Appelez-nous	-
7	08000181		Button-plug (almd)		Appelez-nous	-
8	08011191		Retainer-top/bottom		Appelez-nous	-
9	08011189		Retainer-frzr Rs		Appelez-nous	-
10	08011190		Retainer Frzr Ls		Appelez-nous	-
11	R000900798		Gasket-freezer		Appelez-nous	-
12	3205050		Panel-inner Freezer		Appelez-nous	-
13	08011123		Screw Mtg (20)		Appelez-nous	-
14	3205051		Rack-door		Appelez-nous	-
15	3203856		Panel-ext-almd Rh		Appelez-nous	-
16	08011187		Retainer-ref Rs		Appelez-nous	-
17	08011188		Retainer-ref Ls		Appelez-nous	-
18	R000900734		Gasket-refr		Appelez-nous	-
19	3205054		Panel-inner Refr		Appelez-nous	-
20	08011123		Screw Mtg (34)		Appelez-nous	-
21	3205051		Rack-door (3)		Appelez-nous	-
22	3205052		Tray-egg		Appelez-nous	-
23	3205053		Door-dairy		Appelez-nous	-
24	G89643		Insulation		Appelez-nous	-
15A	3205072		Panel-ext-almd Lh		Appelez-nous	-
4A	3205073		Panel-ext-white Lh		Appelez-nous	-
4A	3205074		Panel-ext-almd Lh		Appelez-nous	-
