SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports

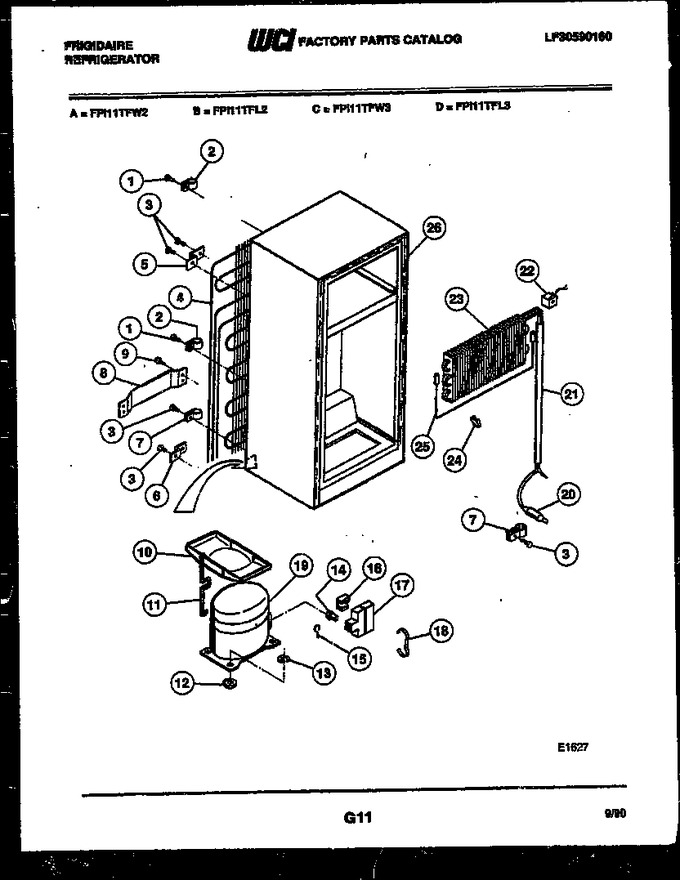

05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G185075		Screw (2)		Appelez-nous	-
2	08011625		Clamp (2)		Appelez-nous	-
3	08011126		Screw (6)		Appelez-nous	-
4	3001709		Condenser		Appelez-nous	-
5	08011161		Brkt-cond Upper (2)		Appelez-nous	-
6	08011160		Brkt-cond Lower (2)		Appelez-nous	-
7	G185166		Clamp (2)		Appelez-nous	-
8	08013300		Cover		Appelez-nous	-
9	08011120		Screw-cover Mtg (4)		Appelez-nous	-
10	5303211329		Drain Pan		Appelez-nous	-
11	5303211336		Retainer Pan (2)		Appelez-nous	-
12	08008778		Grommet (4)		Appelez-nous	-
13	5303211322		Clip (4)		Appelez-nous	-
14	5303211328		Overload		Appelez-nous	-
15	5303211336		Retainer		Appelez-nous	-
16	3204873		Relay		Appelez-nous	-
17	3204977		Cover		Appelez-nous	-
18	08007439		Bale Strap		Appelez-nous	-
19	5303211330		Compressor W/ Elec		Appelez-nous	-
20	08000027		Drier		Appelez-nous	-
21	3204684		Heat Exchanger		Appelez-nous	-
22	3204985		Thermostat Dfr		Appelez-nous	-
23	3203857		Evaporator		Appelez-nous	-
24	08000110		Strap-evap/heater (2)		Appelez-nous	-
25	5308011209		Heater-defr		Appelez-nous	-
26	08011624		Heater-kit		Appelez-nous	-
*70450	3204976		Clip-overload		Appelez-nous	-
*70450	08011215		Service Cord		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
