SELECT A DIAGRAM

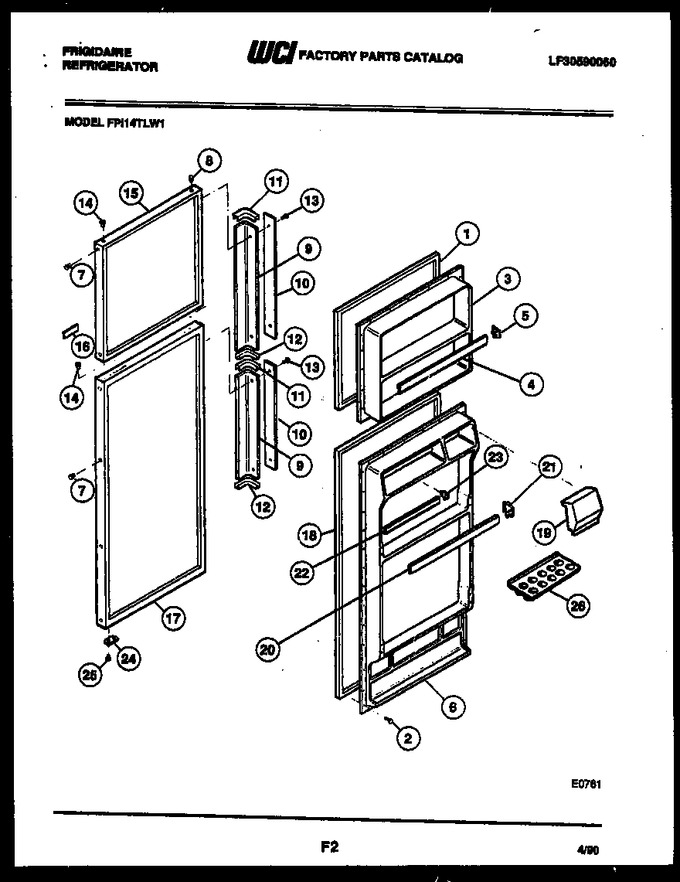

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001304		Gasket, Freezer		Appelez-nous	-
2	218843801		Screw   (Replaces: 5303001001)				$ 14.41
3	3018416		Inner Panel, Freezer		Appelez-nous	-
4	3018417		Door Rack (2)		Appelez-nous	-
5	5303323480		Support, Rh (2)   (Replaces: 5303017378)				$ 14.18
6	3018418		Inner Panel, Refr		Appelez-nous	-
7	5308000180		Plug, Handle, Wheat		Appelez-nous	-
8	5308000176		Plug, Hinge, Wheat		Appelez-nous	-
9	5303017190		Handle Assy (2)		Appelez-nous	-
10	53008010229		Trim (2)		Appelez-nous	-
11	53008010239		End Cap-top (2)		Appelez-nous	-
12	53008010238		End Cap-btm (2)		Appelez-nous	-
13	53008013645		Screw-mtg (4)		Appelez-nous	-
14	53008012007		Bearing-hinge (8)		Appelez-nous	-
15	08017651		Outer Panel-wheat		Appelez-nous	-
16	3201526		Nameplate		Appelez-nous	-
17	5308009872		Outer Panel-wheat		Appelez-nous	-
18	5303001317		Gasket, Refr		Appelez-nous	-
19	3018930		Dairy Door		Appelez-nous	-
20	3018420		Door Rack (2)		Appelez-nous	-
21	5303205650		Support Rs (2)		Appelez-nous	-
22	3018423		Door Rack		Appelez-nous	-
23	5303323480		Support, Rh   (Replaces: 5303017378)				$ 14.18
24	5308000255		Door Stop (2)				$ 42.20
25	5308011745		Screw				$ 10.38
26	5303018932		Egg Tray		Appelez-nous	-
21A	5303205648		Support Ls (2) (non-illustrated)		Appelez-nous	-
23A	5303323481		Support, Lh (non-illustrated)   (Replaces: 5303017381)			Immediately	$ 14.18
5A	5303323481		Support, Lh (2) (non-illustrated)   (Replaces: 5303017381)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
