02 - Door Parts

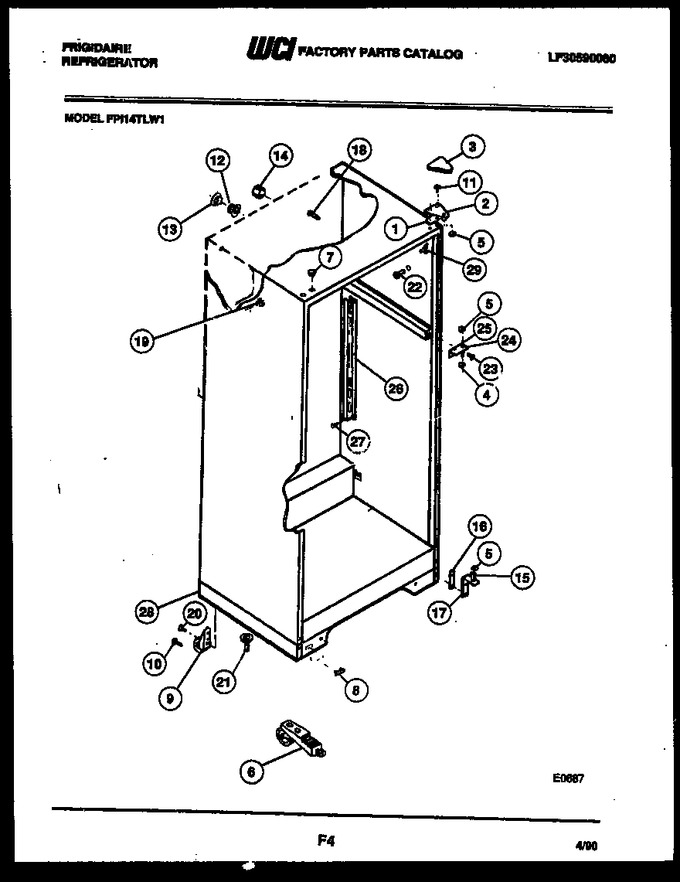

03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 2 | 5308012843 | Hinge-top |
|
$ 71.47 | |||||
| 3 | 5303001665 | Hinge Cover, Wheat |
|
- | |||||
| 4 | 5303001038 | Washer-nylon |
|
$ 13.34 | |||||
| 5 | 530800007 | Washer-nylon (3) |
|
- | |||||
| 6 | 5300188673 | Roller Assy-front (2) |
|
- | |||||
| 7 | 5303001678 | Plug, Wheat |
|
- | |||||
| 8 | 5303001478 | Plug, Hinge Hole |
|
- | |||||
| 9 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 10 | 5308009762 | Bolt, Roller Mtg (2) |
|
- | |||||
| 11 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 12 | 5303001286 | Ferrule-inner |
|
- | |||||
| 13 | 5303001287 | Ferrule-outer |
|
- | |||||
| 14 | 5303001198 | Tube-rubber |
|
- | |||||
| 15 | 5303001321 | Pin, Bottom Hinge |
|
$ 17.25 | |||||
| 16 | 5303001323 | Shim, Bottom Hinge |
|
- | |||||
| 17 | 5308010251 | Bracket-btm Hinge |
|
- | |||||
| 18 | 5308000097 | Support-coil Cvr (2) |
|
- | |||||
| 19 | 5308016571 | Plug-frzr Liner (4) |
|
$ 4.79 | |||||
| 20 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 21 | 5303001386 | Drain Tube |
|
- | |||||
| 22 | 5308000244 | Grommet-shelf (4) |
|
- | |||||
| 23 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 24 | 5303001369 | Bracket-ctr Hinge |
|
- | |||||
| 25 | 5308000184 | Pin, Ctr Hinge |
|
$ 8.87 | |||||
| 26 | 5308000302 | Channel-rs & Ls |
|
- | |||||
| 27 | 5308010253 | Screw, Mtg (6) |
|
- | |||||
| 28 | 5303006086 | Cabinet Base |
|
- | |||||
| 29 | 5308003617 | Corner Trim-wheat |
|
- | |||||
| 17A | 5308012296 | Plate-tapping (2) (non-illustrated) |
|
$ 47.44 | |||||
| 17B | 5303001320 | Screw-hinge Mtg (2) (non-illustrated) |
|
- | |||||
| 22A | 5303001290 | Screw-mtg (4) (non-illustrated) |
|
- | |||||
| 2A | 5308012296 | Plate-tapping (2) (non-illustrated) |
|
$ 47.44 | |||||
| 6A | 5308009790 | Spring-adj Roller (2) (non-illustrated) |
|
$ 4.30 | |||||
| 6B | 5308009761 | Bolt-adj (2) |
|
$ 18.61 | |||||
| 6C | 5308011326 | Washer-nylon (2) (non-illustrated) |
|
$ 9.87 | |||||
| 6D | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 |
