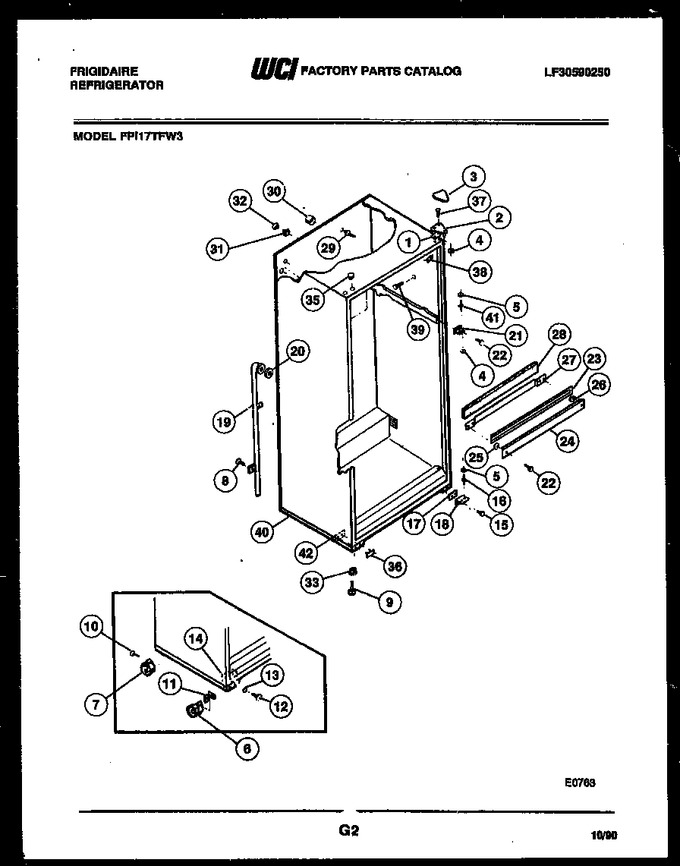

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08012829 | Shim |
|
- | |||||
| 2 | 08012843 | Bracket-hinge Upper |
|
- | |||||
| 3 | 08012820 | Cover-hinge-white |
|
- | |||||
| 4 | 08000007 | Washer-nylon (3) |
|
- | |||||
| 5 | 08000100 | Washer-nylon |
|
- | |||||
| 6 | 08009760 | Roller Assy-front (2) |
|
- | |||||
| 7 | 08009773 | Roller Assy-rear (2) |
|
- | |||||
| 8 | 08000039 | Screw |
|
- | |||||
| 9 | 08003583 | Screw-leveling |
|
- | |||||
| 10 | 08009762 | Screw (2) |
|
- | |||||
| 11 | 08009790 | Spring (2) |
|
- | |||||
| 12 | 08009761 | Bolt 1/4-20 (2) |
|
- | |||||
| 13 | 08011326 | Washer-nylon (2) |
|
- | |||||
| 14 | 08013678 | Support (2) |
|
- | |||||
| 15 | 08010252 | Screw (2) |
|
- | |||||
| 16 | 08003578 | Pin-hinge |
|
- | |||||
| 17 | 08000755 | Shim-hinge |
|
- | |||||
| 18 | 08017609 | Hinge-lower |
|
- | |||||
| 19 | 5303210377 | Tube-drain |
|
$ 109.31 | |||||
| 20 | 5303207353 | Ring - Seal |
|
$ 6.81 | |||||
| 21 | 08000757 | Bracket-hinge |
|
- | |||||
| 22 | 08012258 | Screw |
|
- | |||||
| 23 | 08000744 | Heater-mullion |
|
- | |||||
| 24 | 5303200465 | Mullion, White |
|
- | |||||
| 25 | 08003607 | Washer (4) |
|
- | |||||
| 26 | 08010007 | Spacer (2) |
|
- | |||||
| 27 | 08003604 | Strap-mullion |
|
- | |||||
| 28 | 08009638 | Insulator |
|
- | |||||
| 29 | 08000097 | Support (2) |
|
- | |||||
| 30 | 08000004 | Tube-rubber (2) |
|
- | |||||
| 31 | 08006970 | Ferrule-inner |
|
- | |||||
| 32 | 08006971 | Ferrule-outer |
|
- | |||||
| 33 | 08003584 | Nut-anchor (2) |
|
- | |||||
| 35 | 08007099 | Button-plug-white |
|
- | |||||
| 36 | 08003585 | Button-plug |
|
- | |||||
| 37 | 08000123 | Screw |
|
- | |||||
| 38 | 08010014 | Trim-corner (white) |
|
- | |||||
| 39 | 08009759 | Grommet-shelf Lh (2) |
|
- | |||||
| 40 | 08010091 | Base-cabinet |
|
- | |||||
| 41 | 08000184 | Pin-center Hinge |
|
- | |||||
| 42 | 08012296 | Tapping Plate (2) |
|
- | |||||
| 39A | 08002747 | Grommet |
|
- |
