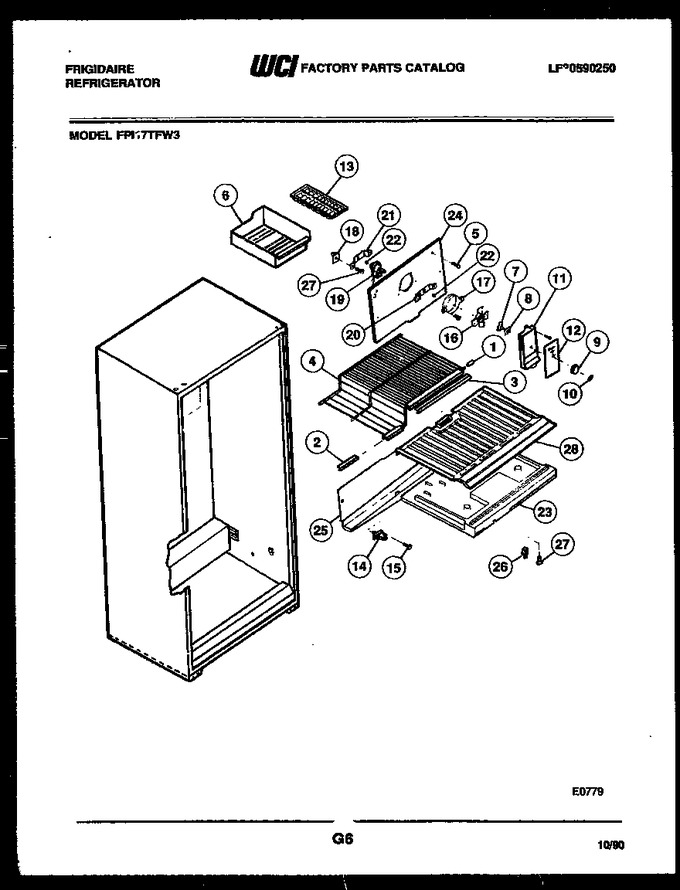

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08013638		Cap-protector (2)		Appelez-nous	-
2	3017427		Trim		Appelez-nous	-
3	3018897		Trim		Appelez-nous	-
4	08009859		Shelf		Appelez-nous	-
5	08012354		Screw (5)		Appelez-nous	-
6	3018645		Container-ice		Appelez-nous	-
7	08000066		Damper		Appelez-nous	-
8	08000067		Nut-push		Appelez-nous	-
9	08009793		Knob-damper		Appelez-nous	-
10	08009823		Label, Damper		Appelez-nous	-
11	08009821		Cover-fan		Appelez-nous	-
12	08009822		Label-fan Cover		Appelez-nous	-
13	1121808		Ice Tray (2)		Appelez-nous	-
14	08000056		Spout		Appelez-nous	-
15	08013647		Pin-push (2)		Appelez-nous	-
16	5308000010		Fan   (Replaces: 08000010)			Immediately	$ 49.03
17	08000124		Ring-orifice		Appelez-nous	-
18	08000107		Bracket-connector		Appelez-nous	-
19	08000036		Motor-fan		Appelez-nous	-
20	08000043		Bracket-front		Appelez-nous	-
21	08000042		Bracket-rear		Appelez-nous	-
22	08000032		Bushing-motor (2)		Appelez-nous	-
23	3018899		Divider-styrofoam		Appelez-nous	-
24	08009753		Cover-coil		Appelez-nous	-
25	08010005		Trough-drain		Appelez-nous	-
26	08000069		Light Switch		Appelez-nous	-
27	08000070		Screw		Appelez-nous	-
28	08015543		Bottom-freezer		Appelez-nous	-
*36891	08013636		Plug-decorative		Appelez-nous	-
