SELECT A DIAGRAM

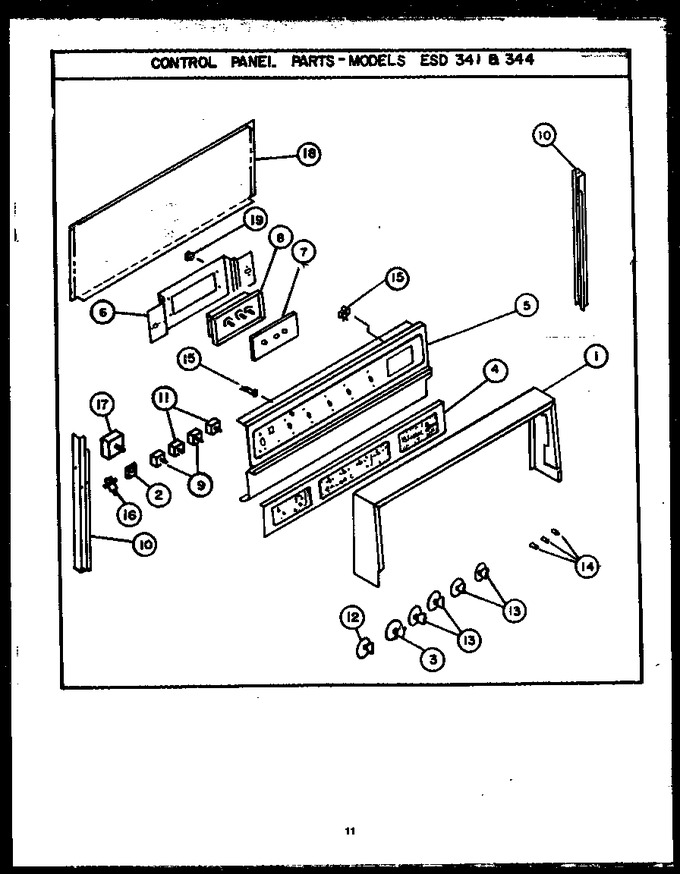

01 - Control Panel


02 - Lower Oven Cabinet Assy


03 - Oven Door Parts


04 - Page 1


05 - Upper Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y63638		Frame		Appelez-nous	-
2	63008		Selector Switch		Appelez-nous	-
3	Y63435		Knob, Selector		Appelez-nous	-
4	Y63511		Decorative Selector		Appelez-nous	-
5	63680W		Control Panel White		Appelez-nous	-
5	63680L		Control Panel Almond		Appelez-nous	-
5	63680H		Control Panel Harvest		Appelez-nous	-
5	63680C		Control Panel Coffee		Appelez-nous	-
5	63680V		Control Panel Avocado		Appelez-nous	-
6	Y63344		Bracket, Clock Mtg.		Appelez-nous	-
7	Y63342		Glass, Timer		Appelez-nous	-
8	63446		Clock, Automatic			Immediately	$ 11.95
9	67442		Switch, Infinite, 6-inch		Appelez-nous	-
10	Y63691		Support, Control Panel		Appelez-nous	-
11	67443		Switch, Infinite, 8-inch		Appelez-nous	-
12	Y63433		Knob - Oven Control		Appelez-nous	-
13	Y63436		Knob - Top Element		Appelez-nous	-
14	Y63441		Knob - Clock		Appelez-nous	-
15	65822		Indicator Light, Clean				$ 199.26
17	Y63416		Thermostat, Oven		Appelez-nous	-
18	Y63690		Rear Cover Plate		Appelez-nous	-
19	M0282009		Nut   (Replaces: Y0097885)				$ 12.06

    View Diagram in Separate Window       Print Part List
