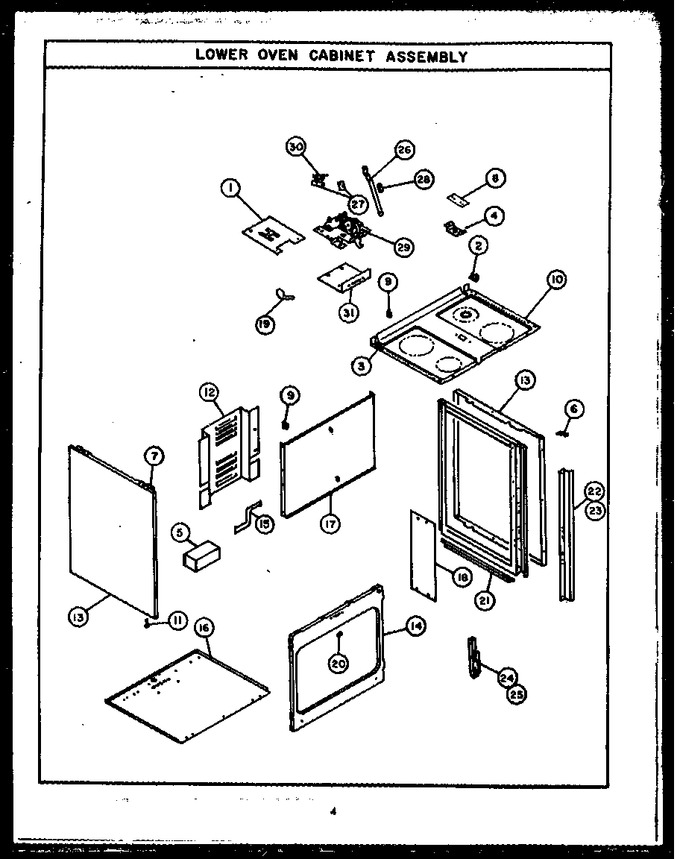

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y63353		Retainer, Oven Light		Appelez-nous	-
2	Y0091519		Bracket		Appelez-nous	-
3	Y0091520		Bracket		Appelez-nous	-
4	67880		Housing, Oven Lamp		Appelez-nous	-
5	0095790		Electrical Box		Appelez-nous	-
6	0091473		Used In 0091231		Appelez-nous	-
7	0091474		Sub 91231 Cap Trim Kit		Appelez-nous	-
8	Y67879		Cover Plate, Oven Lamp		Appelez-nous	-
9	Y0091587		Cable, Clip Esm		Appelez-nous	-
10	67871		Drip Baffle, Gray			Immediately	$ 14.32
11	76205		Leveling Leg		Appelez-nous	-
12	Y63689		Cover Box, Wiring		Appelez-nous	-
13	63260V		Main End - Avocado		Appelez-nous	-
13	63260C		Main End - Coffee		Appelez-nous	-
13	63260H		Main End - Harvest		Appelez-nous	-
13	63260L		Main End - Almond		Appelez-nous	-
13	63260W		Main End - White		Appelez-nous	-
14	Y00000000		See Note Front Frame -- (not Replaceable)		Appelez-nous	-
15	Y63173		Tubing Assy. Ballast		Appelez-nous	-
16	91309		Insulation Retainer		Appelez-nous	-
17	62950		Rear Panel		Appelez-nous	-
18	Y63168		Insulation Retainer Sides		Appelez-nous	-
19	68513		Clamp, Power Cord		Appelez-nous	-
20	76733		Washer, Latch Plate		Appelez-nous	-
21	Y92746		Track - Storage Drawer - R.h.		Appelez-nous	-
21	Y0092747		Storage Drawer Track Lh		Appelez-nous	-
22	Y67950		Front Trim, R.h. - After Seria		Appelez-nous	-
23	Y67949		Front Trim, L.h. - After Seria		Appelez-nous	-
24	67795		Oven Hinge, R.h.		Appelez-nous	-
24	Y66954		Oven Door Hinge - R.h.		Appelez-nous	-
25	Y66953		Oven Door Hinge - L.h.		Appelez-nous	-
26	Y65779		Latch Handle		Appelez-nous	-
27	Y0091523		Insulation, Esm		Appelez-nous	-
28	67844		Knob, Door Latch				$ 27.03
29	Y68102		Latch Assembly - Oven Door		Appelez-nous	-
30	65780		Switch, Oven Door Latch		Appelez-nous	-
31	68101		Bracket, Switch				$ 352.02
	NOTE:		Esd359 Feature An ``ultra Ray`` Broiler Pn For Broil Element: Element - 61732, Reflector 61781, Brkt,reflector Mtg. 61557, Brkt,element Mtg. - 61556, Infinite		Appelez-nous	-
NI	Y68091		Bracket - Clean Switch Mfg.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
