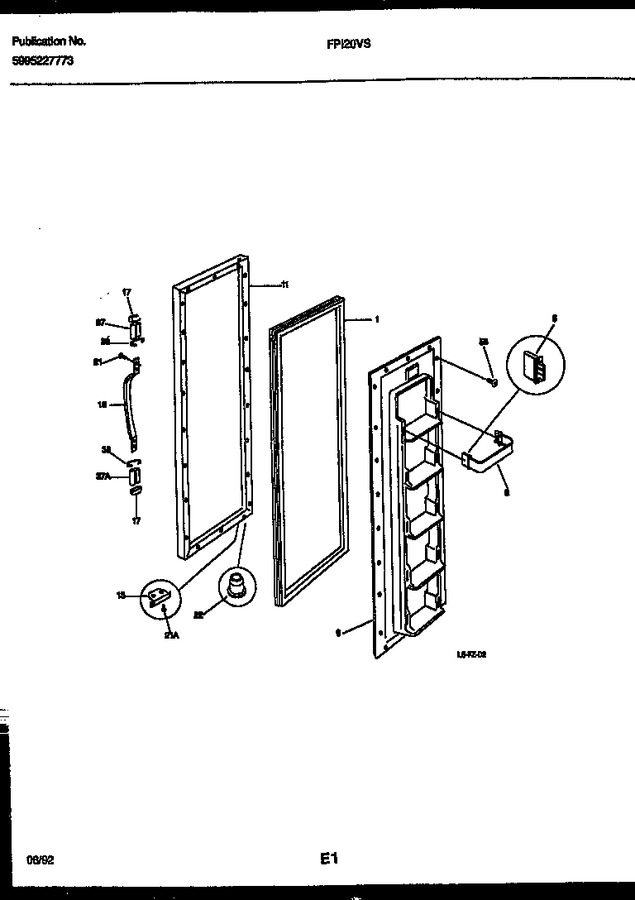

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303288954 | Gasket-frzr Door, Magnetic, White |
|
$ 135.55 | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 8 | 215004200 | Rack, Door, W/end Caps, (5) |
|
- | |||||
| 9 | 5303288955 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 215007701 | Panel-frzr Door, White, W/ Foam Insul |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 17 | 215268200 | Handle End, Black |
|
- | |||||
| 18 | 215261600 | Handle-door, Black |
|
- | |||||
| 21 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215268101 | Trim-handle, 1.74``, Black, Upper |
|
- | |||||
| 38 | 215117301 | Band-decorative,handle |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *66280 | 5303007739 | Insulation-door, Fiberglass, (bulk) Note: Use Door Dyke |
|
- | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 37A | 215268102 | Trim-handle, 2.98``, Black, Lower |
|
- |
