Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303289025 Condenser Appelez-nous -
2 5303289029 Clip-cond Mtg. (4) Appelez-nous -
3 215226501 Block-evap Coil,styrofoam Insul,rh Appelez-nous -
4 5303305677 Drier-filter   (Replaces: 5308000027) In-Stock Immediately $ 31.67

5 215225400 Harness-wiring, Main Appelez-nous -
6 215226800 Harness-wiring, Machine Compt Appelez-nous -
7 5316254901 Cord-electric Power Appelez-nous -
8 5303289033 Cover-wiring Appelez-nous -
14 5303289039 Heater-defrost Appelez-nous -
15 215289601 Evaporator Coil, W/ Heat Exchangr Appelez-nous -
16 5308000110 Strap-evap/heater, Aluminum In-Stock Immediately $ 59.82

17 5303289042 Insulator-evap Appelez-nous -
19 5303001198 Tube-rubber Appelez-nous -
21 215095200 Thermostat-defrost Appelez-nous -
22 5303289030 Base-compressor Mtg Special Order $ 213.57

23 215175000 Grommet-compr Mtg, (4) Appelez-nous -
25 215014200 Clip-compressor Mtg Appelez-nous -
29 5303917191 Compressor Only, Without Electricals Appelez-nous -
30 216008900 Starter-ptc Appelez-nous -
31 5303271616 Overload Special Order $ 85.20

32 215012000 Wire-bale Special Order $ 2.63

41 5308000039 Screw Appelez-nous -
43 215174700 Clamp, Service Cord, Strain Relief Appelez-nous -
45 5304455651 Screw   (Replaces: 5303001343) Special Order $ 14.41

15A 3206414 Tube-inlet (non-illustrated) Special Order $ 31.61

1A 5303208866 Spacer-tube (non-illustrated) Special Order $ 1.94

1A 5303289026 Spacer-tube (non-illustrated) Appelez-nous -
3A 215305900 Block-evap Coil, Styrofoam Insul, Lh (non-illustrated) Appelez-nous -
43A 5303001199 Clamp Special Order $ 65.92

43B 240396801 Clamp, Nylon   (Replaces: 5308000133) Special Order $ 19.13

5A 215013800 Harness-wiring, Refr Controls (non-illustrated) Appelez-nous -
5B 215226000 Harness-wiring, Frzr Controls (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

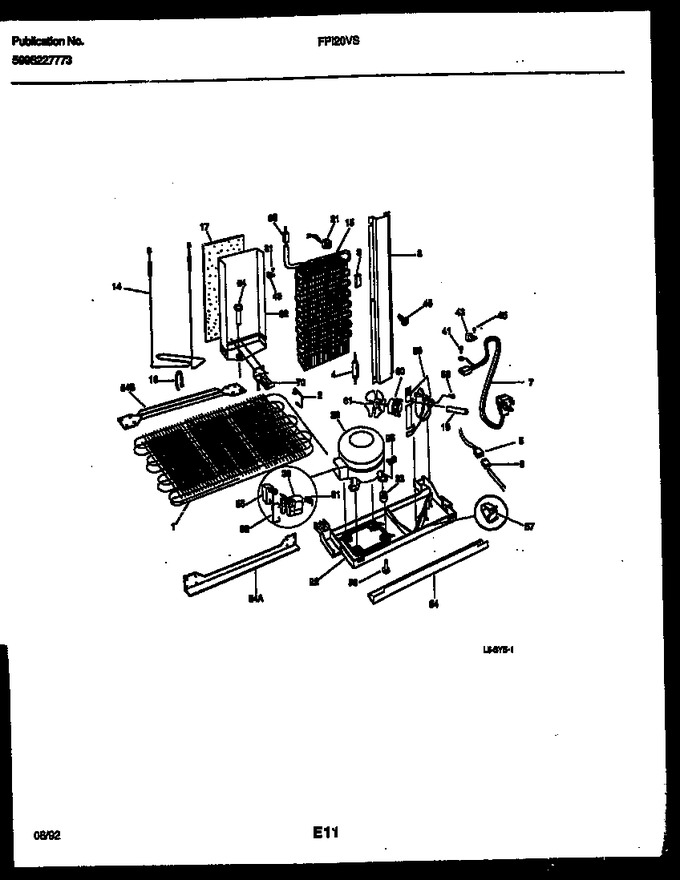

Diagram for FPI20VSW0
