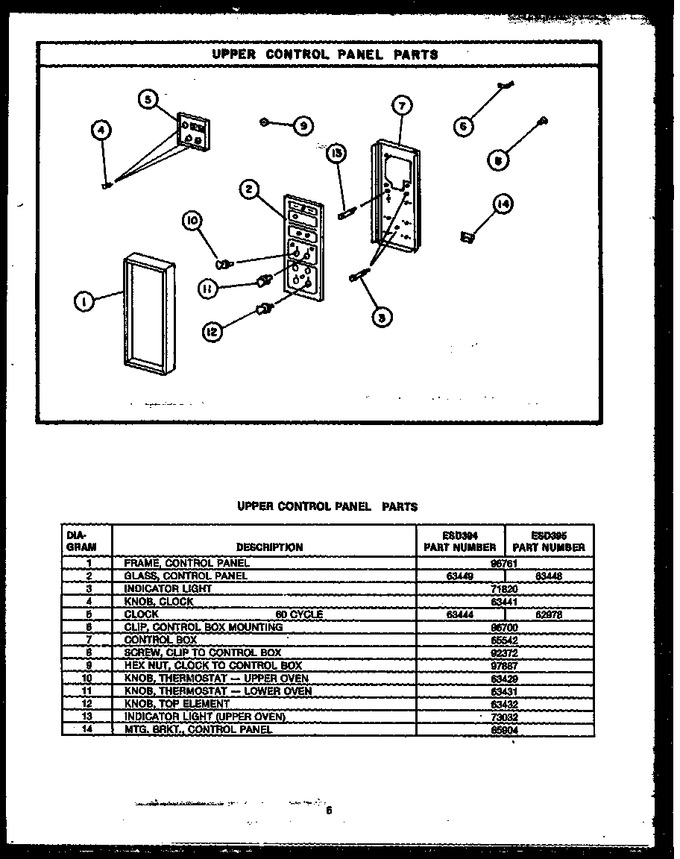

| 1 | 0096761 | Trim Frame, Control Panel |
|
- | |||||
| 2 | 63448 | Glass, Control Panel |
|
- | |||||
| 3 | Y71820 | Indicator Light |
|
- | |||||
| 4 | Y63441 | Knob - Clock |
|
- | |||||
| 5 | Y62978 | Clock, 60 Cycle |
|
- | |||||
| 6 | Y0096700 | Mtg Clips, Control Box |
|
- | |||||
| 7 | Y65542 | Control Box |
|
- | |||||
| 8 | 0092372 | Screw 6x1/4 Phil Pan Hd |
|
- | |||||
| 9 | M0282005 | Nut K (Replaces: Y0097887) |
|
$ 7.07 | |||||
| 10 | Y63429 | Knob, Thermostat - Upper Oven |
|
- | |||||
| 11 | Y63431 | Knob, Thermostat - Lower Oven |
|
- | |||||
| 12 | Y63432 | Knob, Top Element |
|
- | |||||
| 13 | 73032 | Glass Splasher |
|
- | |||||
| 14 | Y65904 | Mtg. Brkt., Control Panel |
|
- | |||||
| NOTE: | Esd397 Feature An ``ultra Ray`` Broiler: Pn For Broil Element In These Models Are: Element - 61732, Reflector 61781, Brkt,reflector Mtg. 61557, Brkt,element M |
|
- |
