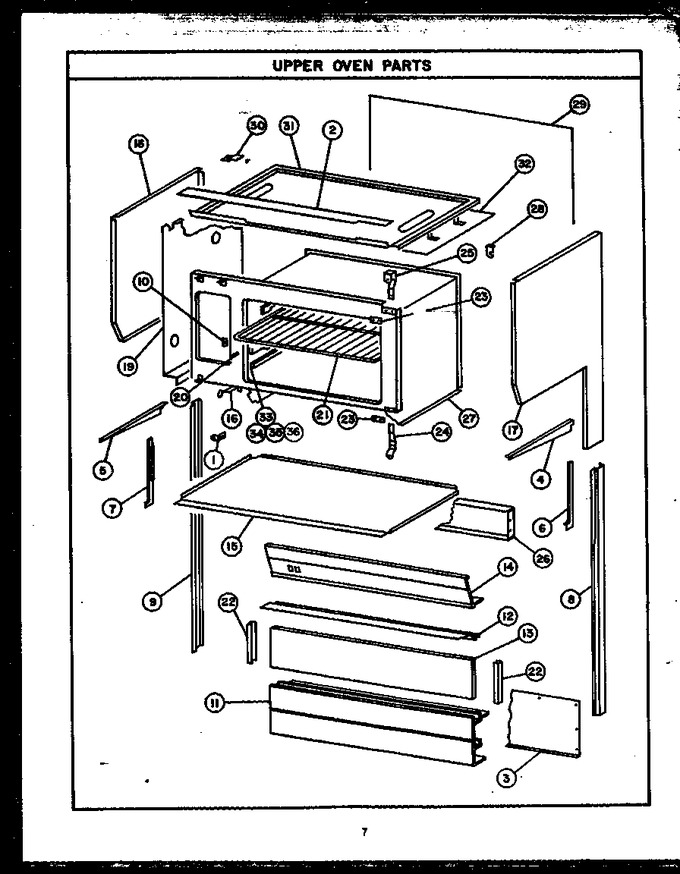

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0099913		Bracket		Appelez-nous	-
3	78002-3		Oven Bottom		Appelez-nous	-
4	Y71972		Trim Strip, R.h.		Appelez-nous	-
5	Y71973		Trim Strip, L.h.		Appelez-nous	-
6	Y0091477		Trim Support		Appelez-nous	-
7	Y0091478		Trim Support		Appelez-nous	-
8	71096		Support Channel - R.h.		Appelez-nous	-
9	71095		Support Channel - L.h.		Appelez-nous	-
10	Y75826		Plate, Door Strike		Appelez-nous	-
11	Y71781		Lower Trim, Splashplate		Appelez-nous	-
12	Y71971		Rear Trim		Appelez-nous	-
13	Y71968		Glass, Splashplate		Appelez-nous	-
14	Y62976		Decorative Panel		Appelez-nous	-
15	71317-3		Jacket Bottom, Gray		Appelez-nous	-
16	71092		Door Guide		Appelez-nous	-
17	71087V		Jacket End - R.h., Avocado		Appelez-nous	-
17	71087W		Jacket End - R.h., White		Appelez-nous	-
17	71087H		Jacket End - R.h., Harvest		Appelez-nous	-
17	71087C		Jacket End - R.h., Coffee		Appelez-nous	-
17	71087L		Jacket End - R.h., Almond		Appelez-nous	-
18	71086H		Jacket End - L.h., Harvest		Appelez-nous	-
18	71086L		Jacket End - L.h., Almond		Appelez-nous	-
18	71086W		Jacket End - L.h., White		Appelez-nous	-
18	71086V		Jacket End - L.h., Avocado		Appelez-nous	-
18	71086C		Jacket End - L.h., Coffee		Appelez-nous	-
19	Y0094391		Sub 60714, Retainer, Insul.		Appelez-nous	-
20	Y78034		Strike, Oven Door		Appelez-nous	-
21	78001		Oven Rack		Appelez-nous	-
22	Y71954		Trim, Splashplate		Appelez-nous	-
23	0093625		Cover Plate Front Frame		Appelez-nous	-
24	Y0094356		Hinge, Bottom		Appelez-nous	-
25	Y0094357		Hinge, Top		Appelez-nous	-
26	Y91508		Cover, Wire		Appelez-nous	-
27	Y00000000		See Note Main Body -- (not Replaceable)		Appelez-nous	-
28	73057		Switch		Appelez-nous	-
29	71097		Backplate		Appelez-nous	-
30	73060		Oven Vent			Immediately	$ 24.25
31	74091		Jacket Top		Appelez-nous	-
32	78701		Insulation Retainer, Jacket To		Appelez-nous	-
33	71146-3		Panel, Side Rh		Appelez-nous	-
34	71147-3		Lh Panel, Upper Oven, Removble		Appelez-nous	-
35	78172-3		Sub 78172cg Rear Panel		Appelez-nous	-
36	71064		Panel, Surface Light			Immediately	$ 26.00
NI	Y79740		Clip, Spring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
