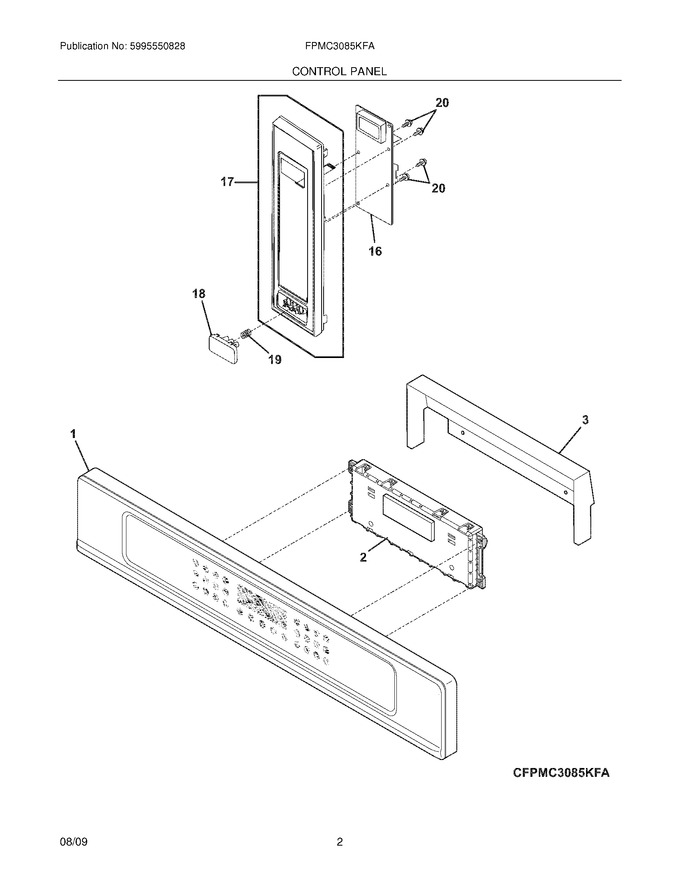

03 - Control Panel


05 - Microwave


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318295705		Deflector,timer		Appelez-nous	-
18	5304497439		Push Button,door ,stainless   (Replaces: 5304472845)				$ 262.49
19	5304440831		Spring,door Button				$ 20.29
20	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
F1	318575152		Panel Assembly,control ,stainless ,w/overlay-trim				$ 703.34
F16	5304474853		Control Board,assembly ,microwave				$ 396.16
F17	5304497439		Control Panel Assy,stainless   (Replaces: 5304472841)				$ 262.49
F2	316560149		Controller,electronic ,es530w3				$ 380.65
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
