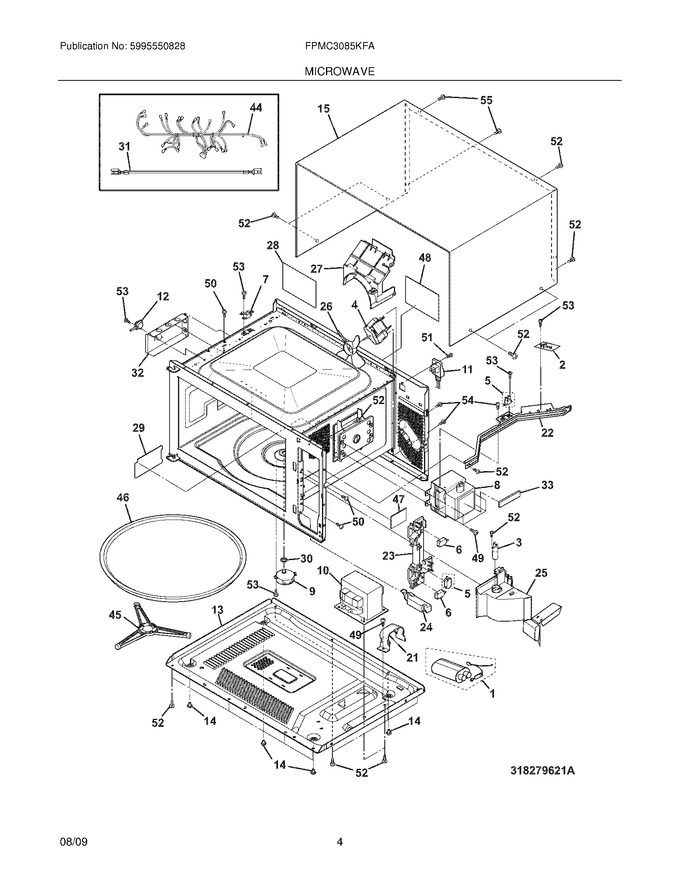

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304440814		Base,unit Chassis				$ 105.26
14	5304474852		Foot,cabinet Support		Appelez-nous	-
15	5304440816		Cabinet,outer Casing ,black				$ 205.20
21	5304440838		Retainer,capacitor Strap				$ 8.77
22	5304462313		Bracket,chassis Support		Appelez-nous	-
23	5304503439		Latch Hook   (Replaces: 5304440840)			Immediately	$ 60.62
24	5304485407		Lever,door Release   (Replaces: 5304464899)				$ 63.36
25	5304440842		Duct,magnetron		Appelez-nous	-
27	5304472846		Duct,cooling Fan		Appelez-nous	-
28	5304465314		Label,nhw Caution		Appelez-nous	-
29	5304462314		Cover,waveguide				$ 60.17
30	5304440288		Bushing,motor Shaft ,turntable				$ 16.45
32	5304440847		Duct,ah Sensor		Appelez-nous	-
33	5304441910		Cushion,magnetron Pad		Appelez-nous	-
45	5304467717		Support Assy,turntable   (Replaces: 5304440284)				$ 122.18
46	5304529482		Tray,turntable ,glass   (Replaces: 5304440868)				$ 108.44
47	5304440334		Label,caution-monitor		Appelez-nous	-
48	5304440333		Label,caution-dhhs		Appelez-nous	-
49	5303319636		Screw		Appelez-nous	-
50	5303319641		Screw				$ 12.76
51	5304462315		Screw,4 Mm X 12 Mm ,ground		Appelez-nous	-
52	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
53	5304453725		Screw,3mm X 8mm		Appelez-nous	-
54	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
55	5304440873		Screw,torx ,t20h/gtxh20-100				$ 11.34
F1	5304487566		Capacitor/rectifier Assy,hv   (Replaces: 5304462258)			Immediately	$ 122.62
F10	5304473321		Transformer,power				$ 253.64
F11	5304440784		Power Cord,electric				$ 120.49
F12	5304440785		Sensor,humidity ,cook Control				$ 56.18
F2	5304493151		Filter,noise ,electronic   (Replaces: 5303322968)				$ 54.76
F26	5304440843		Fan Blade,cooling Fan				$ 37.75
F3	5304500304		Lamp Assy,with Socket   (Replaces: 5304440779)				$ 63.79
F31	5304440870		Wire,high Voltage-a		Appelez-nous	-
F4	5304493152		Motor,cooling Fan   (Replaces: 5304448490)				$ 87.43
F44	5304440878		Wiring Harness,main				$ 156.45
F5	5304468224		Switch Kit,monitor ,with Ct Fuse   (Replaces: 5304440027)			Immediately	$ 83.14
F6	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F7	5304440780		Fuse,cavity Temp ,20 Amp ,250 V				$ 85.76
F8	5304521745		Magnetron   (Replaces: 5304472253)				$ 189.05
F9	5304448832		Motor,turntable   (Replaces: 5304440782)			Immediately	$ 74.09
NI	240442708		Screw,10-32 X 3/4 ,(4)   (Replaces: 5304400794)				$ 8.34
