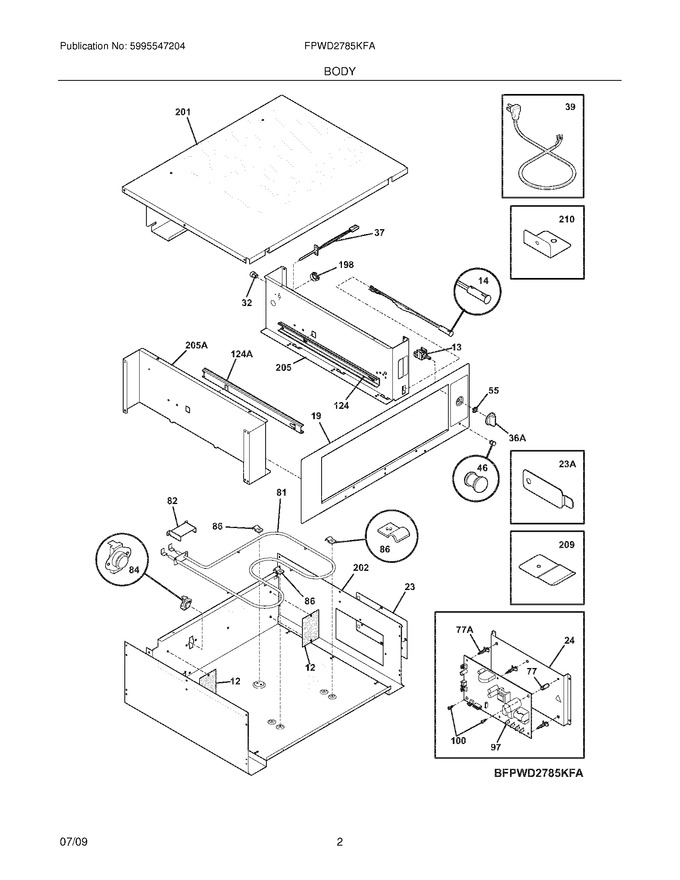

03 - Body
05 - Drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 318388000 | Bumper,absorber ,felt ,(2) |
|
- | |||||
| 19 | 318387606 | Control Panel,assembly ,w/deco Plate |
|
- | |||||
| 23 | 318310109 | Panel,service |
|
- | |||||
| 24 | 318310701 | Bracket,mounting |
|
$ 80.80 | |||||
| 32 | 318228100 | Strain Relief |
|
$ 3.36 | |||||
| 46 | 318378201 | Lens,light |
|
- | |||||
| 55 | 316247700 | Nut,mounting |
|
$ 18.20 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 82 | 318388600 | Guard,element |
|
- | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 100 | 5304400427 | Screw,6-20 X 1/2 ,(2) |
|
- | |||||
| 124 | 318259310 | Channel,drawer ,rh ,outer |
|
$ 123.48 | |||||
| 198 | 08008009 | Bushing,nylon ,snap |
|
- | |||||
| 201 | 318281509 | Wrapper,upper |
|
- | |||||
| 202 | 318281022 | Wrapper,lower |
|
- | |||||
| 205 | 318281213 | Panel,side ,black ,rh |
|
- | |||||
| 209 | 318247402 | Bracket,wall |
|
$ 25.52 | |||||
| 210 | 318262300 | Bracket,front Support ,(2) |
|
$ 32.45 | |||||
| 23A | 318310110 | Panel,cover |
|
- | |||||
| 36A | 318280910 | Knob,control ,grey |
|
$ 32.08 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F124 | 318259311 | Channel,drawer ,lh ,outer |
|
$ 115.40 | |||||
| F13 | 316418002 | Control,potentiometer |
|
$ 162.02 | |||||
| F14 | 318250407 | Light,indicator ,red |
|
$ 57.17 | |||||
| F205 | 318281313 | Panel,side ,black ,lh |
|
- | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F39 | 318144005 | Cord,service |
|
$ 23.99 | |||||
| F81 | 318255301 | Element,warmer Drawer |
|
$ 105.42 | |||||
| F84 | 318005115 | Thermostat |
|
- | |||||
| F97 | 316518020 | Board,timer ,es060 |
|
$ 168.32 | |||||
| FNI | 318532136 | Harness,wiring ,main |
|
- | |||||
| FNI | 318532137 | Harness,wiring ,potentiometer |
|
- | |||||
| NI | 5304436875 | Screw,8-18 X 1/2,black |
|
$ 14.41 | |||||
| NI | 318531900 | Clip,(3) |
|
- | |||||
| NI | 5304474185 | Nut,speed |
|
- | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,silver ,(4) |
|
$ 15.17 | |||||
| NI | 5303323140 | Screw,ground ,10-32 X 0.375 |
|
- | |||||
| NI | 316247800 | Washer,lock ,mtg |
|
$ 18.20 | |||||
| NI | 318388001 | Plate,anti Friction ,felt |
|
- | |||||
| NI | 318399000 | Shield,wire |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303302745 | Screw,10-16x1-1/8 ,square Drive |
|
$ 8.35 | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 ,(8) |
|
Immediately | $ 14.18 | ||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(6) |
|
- |
