SELECT A DIAGRAM

01 - Cover


03 - Body

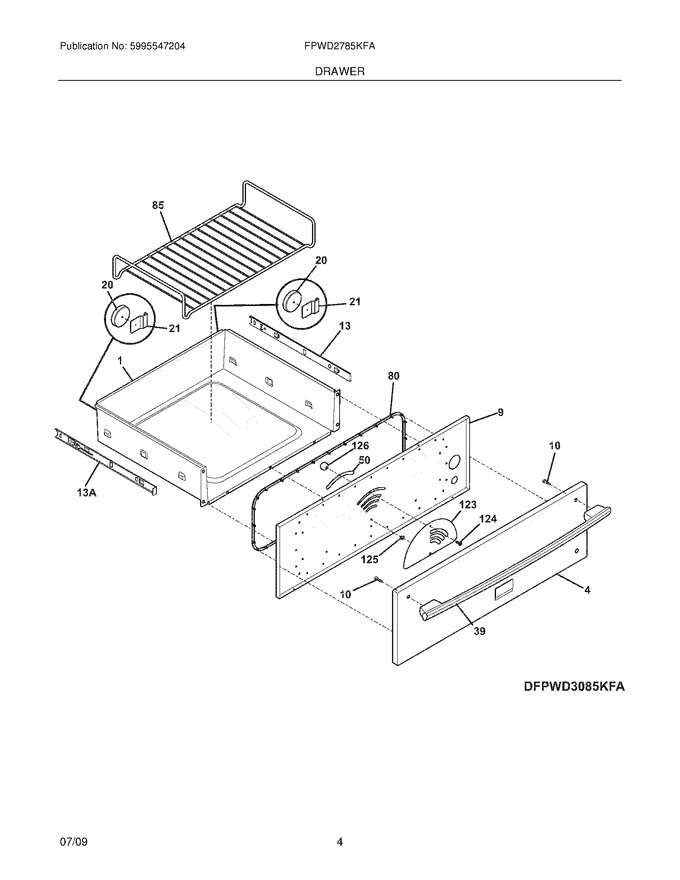

05 - Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314625		Drawer,warmer		Appelez-nous	-
4	318284071		Panel,drawer Front ,stainless ,w/badge		Appelez-nous	-
9	318281631		Panel,drawer ,black ,interior		Appelez-nous	-
10	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
13	318259410		Channel,drawer ,rh ,inner				$ 49.88
20	318373201		Magnet,drawer ,(2)				$ 5.99
21	318378007		Bracket,magnet Mtg ,(2)		Appelez-nous	-
39	318919700		Handle,door ,stainless				$ 192.26
50	318284400		Insert,control ,humidity		Appelez-nous	-
80	318254409		Gasket,warmer Drawer		Appelez-nous	-
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
123	318247110		Panel,control ,black ,humidity		Appelez-nous	-
124	5304443138		Screw,10-24 X 3/8		Appelez-nous	-
125	5304436030		Rivet		Appelez-nous	-
126	318251100		Handle,control ,humidity		Appelez-nous	-
13A	318259411		Channel,drawer ,lh ,inner				$ 43.31
NI	5304437021		Screw,mounting ,8-18 X 0.25 ,chrome ,(7)		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,silver ,(4)				$ 15.17
NI	134716700		Washer,flat ,(2)   (Replaces: 3201909)				$ 2.12

    View Diagram in Separate Window       Print Part List
