SELECT A DIAGRAM

01 - Cover

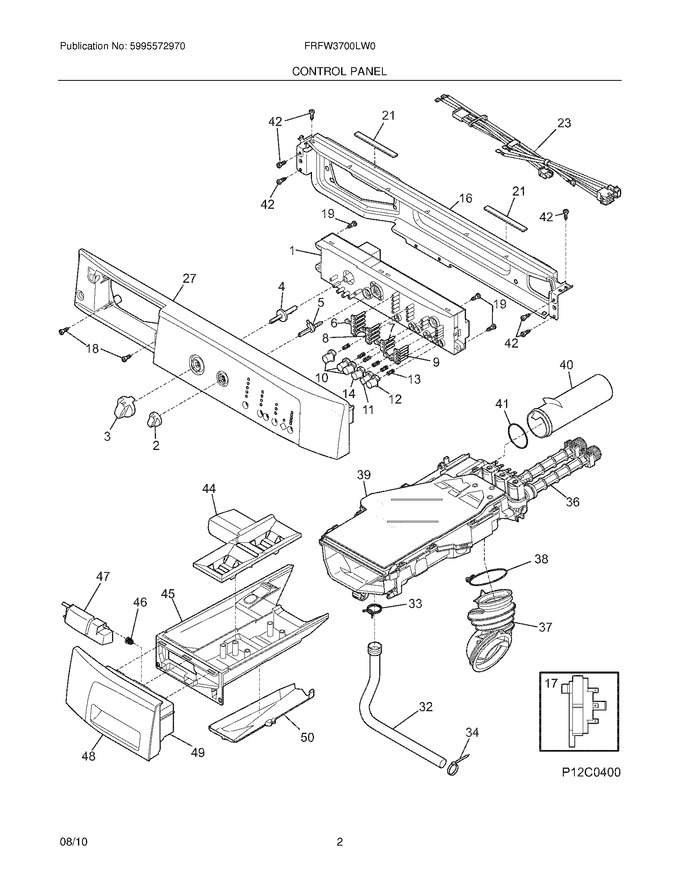

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134432000		Knob,function				$ 43.42
3	134431900		Knob,program				$ 93.19
4	134347700		Pin,program Knob				$ 19.74
5	134347300		Pin,function Knob				$ 11.60
6	134429100		Light Pipe,array ,1 Row Of 5				$ 130.57
7	134429300		Light Pipe,array ,3 Row Of 3				$ 11.34
8	134429200		Light Pipe,array ,2 Row Of 4				$ 12.97
9	134429400		Light Pipe,array ,4 Start Group				$ 13.39
10	134385100		Push Button,function				$ 13.76
11	134385201		Push Button,start				$ 13.70
12	134385301		Push Button,pause				$ 32.97
13	134349400		Spring,push Button				$ 9.14
14	134385400		Push Button,soil				$ 12.13
16	134364800		Bracket,top Front				$ 70.98
18	131302800		Screw,10-16ab X 0.375			Immediately	$ 26.58
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
21	134407900		Dampener,vibration				$ 17.01
27	137345710		Panel,control Console		Appelez-nous	-
32	134586500		Hose,disp-to-bellows				$ 52.24
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie,5.60 Inch   (Replaces: 5303321209)				$ 10.63
37	134372300		Hose,disp-to-tub				$ 58.32
38	134372400		Clamp,tub Hose				$ 64.49
39	134446150		Housing,dispenser ,valve,cover		Appelez-nous	-
40	134372100		Tube,disp-to-overflo				$ 50.87
41	134372200		O-ring,overflow Tube				$ 13.74
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
44	134370200		Cover,dispenser			Immediately	$ 41.11
45	134370000		Drawer,dispenser			Immediately	$ 74.11
46	134349500		Spring,door Latch				$ 7.71
47	134386500		Latch,dispenser ,slider Lock				$ 35.44
48	137346410		Handle,dispenser ,front		Appelez-nous	-
49	134386200		Frame,drawer Handle				$ 107.21
50	134409320		Conveyor,dispenser ,lower   (Replaces: 134370100)			Immediately	$ 366.58
F1	137005005		Control Board,pc ,with Housing				$ 295.68
F17	134844501		Switch,pressure				$ 60.96
F23	134435300		Wiring Harness,controls				$ 66.94
F36	134866600		Valve,dispenser ,non Ntc			Immediately	$ 147.47
FNI	137214800		Harness,main				$ 167.74
NI	134371300		Gasket,disp-to-valve			Immediately	$ 51.04
NI	134178901		Screw,quadrex Ph ,8-18ab X 0.500   (Replaces: 131311900)				$ 14.89

    View Diagram in Separate Window       Print Part List
