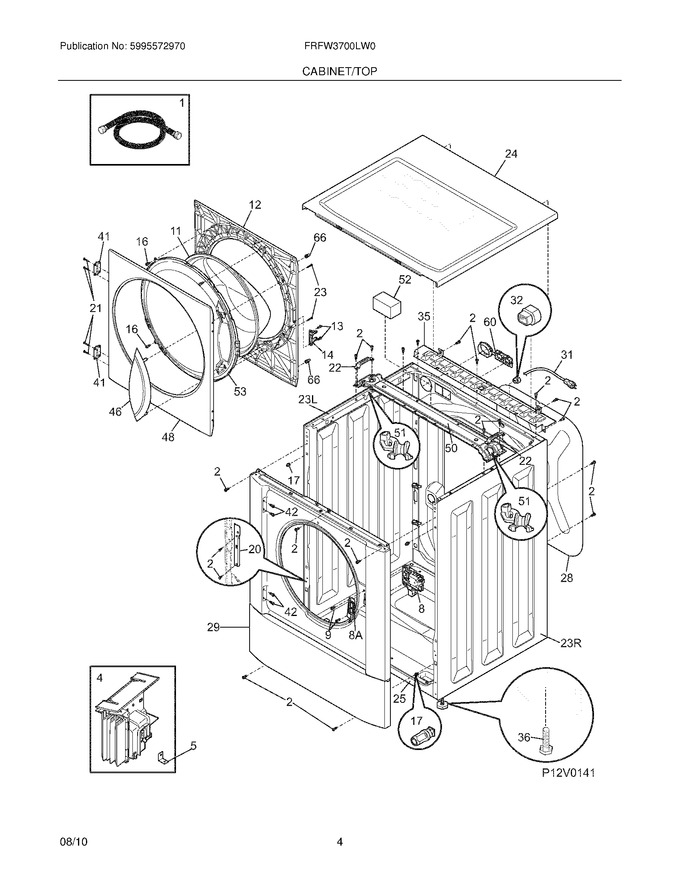

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131454100		Hose,water Inlet ,4 Ft. ,hose & Washer		Appelez-nous	-
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	5304504863		Control Board,motor   (Replaces: 134409905)			Immediately	$ 345.34
5	134522900		Bracket,angle ,motor Control				$ 13.01
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
11	134366400		Panel,door Glass   (Replaces: 134950800)				$ 313.91
12	134507300		Panel,inner Door ,with Bumper				$ 135.66
13	131302901		Screw,10-16 X 0.750				$ 4.96
14	131763310		Striker,door/lock/sw			Immediately	$ 17.15
16	134178901		Screw,8-18ab X 0.455				$ 14.89
17	134638700		Clip,assembly		Appelez-nous	-
20	134434901		Bracket,ls Panel ,reinforcement				$ 43.73
21	137361500		Screw,comb Flat Head ,8-18ab X 0.75   (Replaces: 134424700)				$ 7.79
22	134648500		Bracket-spring,retainer				$ 19.69
23	134522100		Screw,no.12 Flat Head ,10-14p ,quad Drive				$ 18.90
24	137371700		Panel,work Top ,white				$ 270.11
25	134775500		Base,washer				$ 154.77
28	134364300		Panel,service Access ,rear				$ 54.39
29	137021510		Panel,cabinet Front ,white				$ 213.62
32	5303209428		Bushing,power Cord				$ 17.01
35	134365100		Bracket,top Support ,rear				$ 150.99
36	134548800		Leveling Leg,screw ,plastic			Immediately	$ 30.20
41	134412400		Hinge,door				$ 55.13
42	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
46	134412860		Handle,door ,black			Immediately	$ 70.13
48	134913103		Panel,outer Door ,white				$ 83.42
50	134645600		Bracket,tub Suspension		Appelez-nous	-
51	134655800		Protector,tub Suspension ,spring Hook ,(2)				$ 4.45
52	131931202		Dampener,vibration ,foam				$ 17.35
53	134507401		Adapter,door Glass Ring				$ 173.62
60	134372000		Grommet,dispenser ,back Panel				$ 30.47
66	134366500		Bumper,door				$ 13.18
23L	134775310		Panel,left Side ,white				$ 221.13
23R	134775210		Panel,right Side ,white				$ 232.73
8A	137279900		Vent,door ,complete Assy				$ 47.48
F31	5304505407		Power Cord,electric Svce   (Replaces: 134501000)				$ 88.20
F8	131763256		Door Lock/switch Assy   (Replaces: 131763202)			Immediately	$ 146.76
FNI	134547600		Wiring Harness,motor Control				$ 70.09
FNI	134606800		Wiring Harness,door Switch				$ 113.69
NI	134889700		Clip, Hose,drain ,rear-panel				$ 18.38
NI	137021600		Bracket,mounting ,left ,front Panel				$ 11.96
NI	137021610		Bracket,mounting ,right ,front Panel				$ 21.60
NI	134178901		Screw,quadrex Ph ,8-18ab X 0.500   (Replaces: 131311900)				$ 14.89
NI	134591500		Plug Assy,shipping Holes ,back				$ 46.78
NI	134629400		Screw,mc5x8.5 Torx ,cabinet Mtg				$ 12.76
NI	134876501		Clip,hose,drain ,rear-panel   (Replaces: 134876500)				$ 19.85
NI	134434900		Bracket,rs Panel ,reinforcement		Appelez-nous	-
