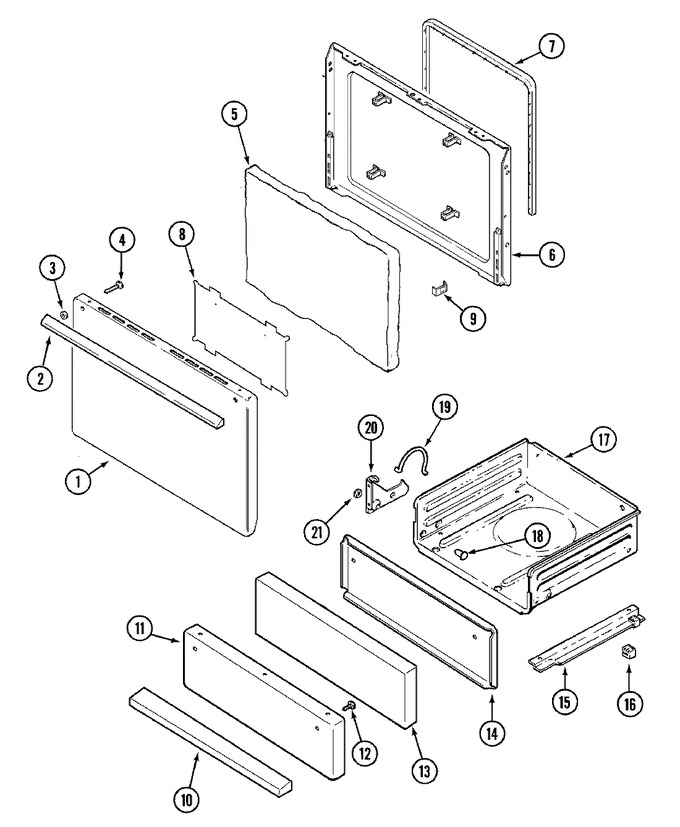

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	2401F096-71		Panel, Door (wht)	10	Appelez-nous	-
2	2411F003-71		Handle, Door (wht)	10	Appelez-nous	-
3	WP74005058		Spacer, Handle (wht)   (Replaces: 8010P089-60)	10			$ 7.05
4	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	10		Immediately	$ 7.69
5	4804F050-60		Insulation, Door 2``	10	Appelez-nous	-
6	2402W211-19		Lining, Door	10	Appelez-nous	-
7	WP7212P043-60		Seal, Silicone   (Replaces: 7212P034-60)	10		Immediately	$ 56.83
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	3601F250-51		Baffle, Door	10	Appelez-nous	-
9	7112P034-60		Clip, Door	10	Appelez-nous	-
10	2411F003-71		Handle, Door (wht)	10	Appelez-nous	-
11	2403F028-71		Panel, Drawer (wht)	10	Appelez-nous	-
12	74002481		Screw, Handle   (Replaces: 7101P283-60)	10			$ 5.82
13	4804F025-60		Insulation	10	Appelez-nous	-
14	2404F035-19		Lining, Broiler Drawer	10	Appelez-nous	-
15	3404F022-51		Track, Drawer (lt)	10	Appelez-nous	-
15	3404F023-51		Track, Drawer (rt)	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	8016P011-60		Glide, Drawer	10	Appelez-nous	-
16	8016P015-60		Glide	10			$ 5.65
17	3407F012-19		Drawer, Broiler	10	Appelez-nous	-
18	7113P012-60		Pin, Broiler Hinge	10	Appelez-nous	-
19	7803P065-60		Spring, Hinge (rt)	10	Appelez-nous	-
19	7803P064-60		Spring, Hinge (lt)	10	Appelez-nous	-
20	3418F079-51		Hinge, Drawer (lt)	10	Appelez-nous	-
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	3418F080-51		Hinge, Drawer (rt)	10	Appelez-nous	-
21	7103P022-60		Nut, Grip	10	Appelez-nous	-
