01 - Body
02 - Door/drawer
03 - Gas Controls
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

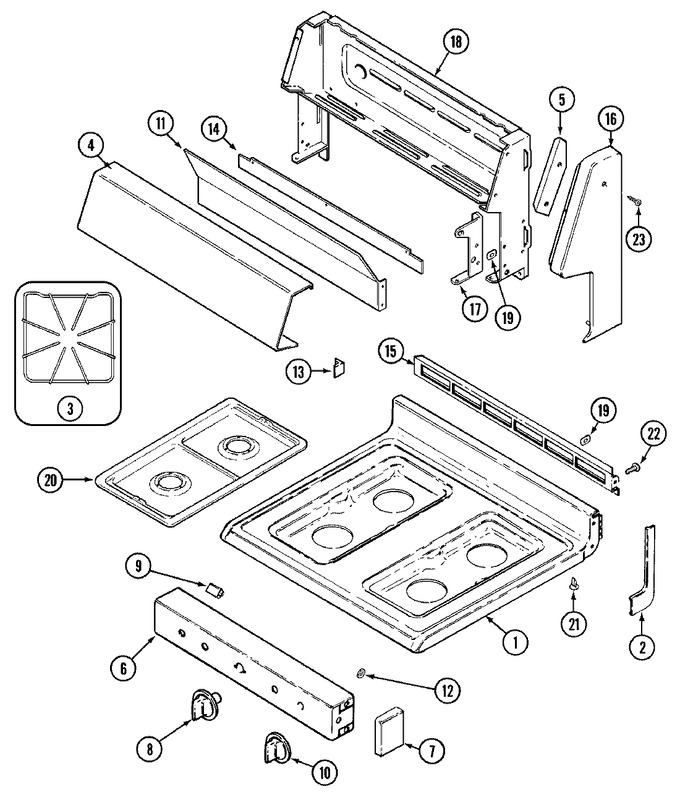

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W085-81 | Top, Main (wht) | 10 |
|
- | ||||
| 1 | 7101P343-60 | Screw | 10 |
|
- | ||||
| 2 | 7746P032-60 | End Cap, Top (rt-wht) | 10 |
|
- | ||||
| 2 | 7746P033-60 | End Cap, Top (lt-wht) | 10 |
|
- | ||||
| 3 | 1430291 | Grate (gray) (Replaces: 2003W026-26) | 10 |
|
$ 256.88 | ||||
| 4 | 2601F405-81 | Panel, Control (wht) | 10 |
|
- | ||||
| 5 | 3807F450-45 | Support, Control Pnl (lt) | 10 |
|
- | ||||
| 5 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 3807F449-45 | Support, Control Pnl (rt) | 10 |
|
- | ||||
| 6 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 6 | 74002119 | Panel, Manifold (wht) | 10 |
|
- | ||||
| 6 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 7 | W10124350 | Not Required Part Or See Note | 19 |
|
- | ||||
| 7 | 74002120 | End Cap, Manifold Pnl (wht) | 10 |
|
- | ||||
| 8 | 7731P078-60 | Knob, Thermostat (wht----na | 10 |
|
- | ||||
| 9 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 10 | 7733P046-60 | Knob, Valve (wht) | 10 |
|
- | ||||
| 11 | 8036P003-60 | Shield, Sight | 10 |
|
- | ||||
| 11 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 7112P092-60 | Clip, Spring Grip | 10 |
|
- | ||||
| 13 | 8010P083-60 | Spacer | 10 |
|
- | ||||
| 13 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 14 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 3604F188-09 | Shield, Flue | 10 |
|
- | ||||
| 15 | 3608F042-26 | Trim, Vent (dark Gray) | 10 |
|
- | ||||
| 16 | 7726P089-60 | End Cap (rt-wht) | 10 |
|
- | ||||
| 16 | 7726P090-60 | End Cap (lt-wht) | 10 |
|
- | ||||
| 17 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 17 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 17 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 4005F448-45 | Cover, Wire | 10 |
|
- | ||||
| 18 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 4001F091-51 | Housing, Control Panel | 10 |
|
- | ||||
| 19 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 10 |
|
$ 7.68 | ||||
| 20 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- | ||||
| 21 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 22 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 23 | 7101P317-60 | Screw | 10 |
|
- | ||||
| 23 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 24 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- | ||||
| 24 | 8113P043-60 | Manual, Use & Care | 10 |
|
- |
