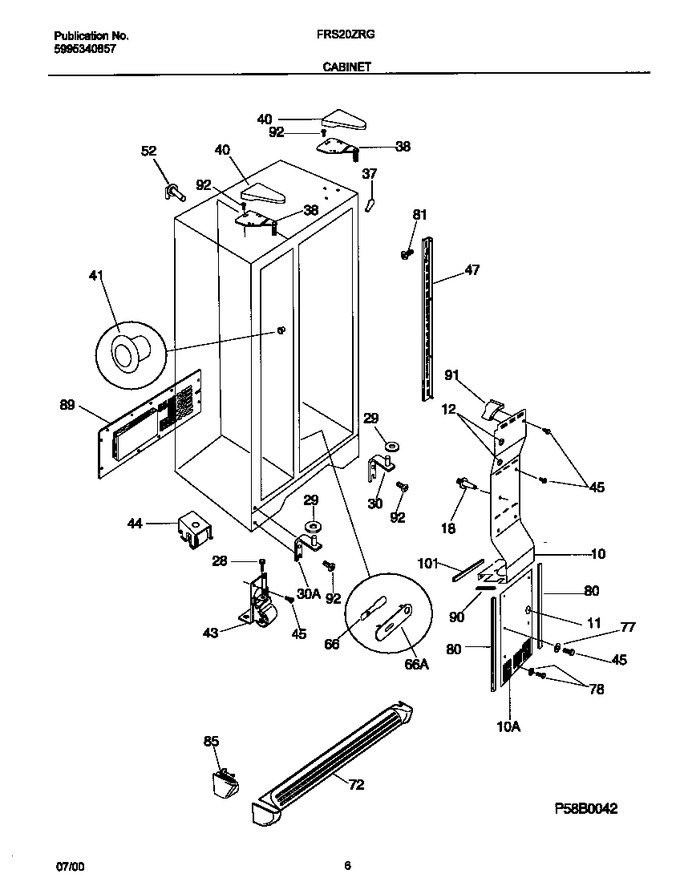

04 - Cabinet


05 - Shelves


06 - Control


07 - Systems


08 - I&wdisp


09 - Icecont


10 - Icemakr


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	218748901		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303001147		Plug-harness Hole   (Replaces: 215230400)				$ 22.30
18	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	218993701		Bracket-lower Hinge,rh ,w/hinge Pin		Appelez-nous	-
37	5303321083		Trim-cabinet Corner, Black				$ 9.92
40	5303323268		Cover-upper Hinge,black				$ 50.35
41	5304509705		Grommet,shelf/rod Mtg ,rs   (Replaces: 5303001609)				$ 10.01
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
44	218738300		Roller Assy, Rear, (2)				$ 51.98
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
52	215454600		Tube-water,ice Mold Fill ,elbow				$ 81.11
66	215050201		Damper-meat Keeper		Appelez-nous	-
66	218171301		Cover-meat Kpr Dmpr				$ 45.09
72	218359615		Grille/kickplate, Black		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218249802		Seal-coil Cover, (2)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
85	218922705		Cover-lower Hinge,black		Appelez-nous	-
89	215741407		Cover-machine Compt,w/caution Label		Appelez-nous	-
90	215022602		Seal-foam		Appelez-nous	-
91	218964701		Deflector-air,air Duct Cover		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
*04882	5303209814		Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg		Appelez-nous	-
*04883	5303289044		Support-air Duct Cvr,1.83`` Long		Appelez-nous	-
*04884	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*04885	218871201		Washer,nylon ,0.363 Id W/nibs		Appelez-nous	-
*04886	218979701		Tapping Plate,lower Hinge		Appelez-nous	-
*04887	5304500407		Grommet,shelf Mtg ,ls   (Replaces: 5308009759)			Immediately	$ 6.38
*04888	5303322647		Tape-foam		Appelez-nous	-
*04889	218902101		Cap-protector, Lower Hinge		Appelez-nous	-
*04892	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97
*04893	5308016571		Plug-button,cab Liner Holes				$ 4.79
101A	215305701		Seal-foam		Appelez-nous	-
101B	218663103		Gasket-air Duct Cvr		Appelez-nous	-
10A	218751301		Cover-evap Coil,lower		Appelez-nous	-
10B	5308009617		Washer,ext Tooth Lock ,no.10 ,grounding		Appelez-nous	-
30A	218993901		Bracket-lower Hinge,lh ,w/hinge Pin				$ 53.59
30B	218979601		Tapping Plate,lower Hinge		Appelez-nous	-
38A	218215242		Bracket-upper Hinge,with Closer ,black ,rh		Appelez-nous	-
38B	218215244		Bracket-upper Hinge,with Closer ,black ,lh				$ 68.28
