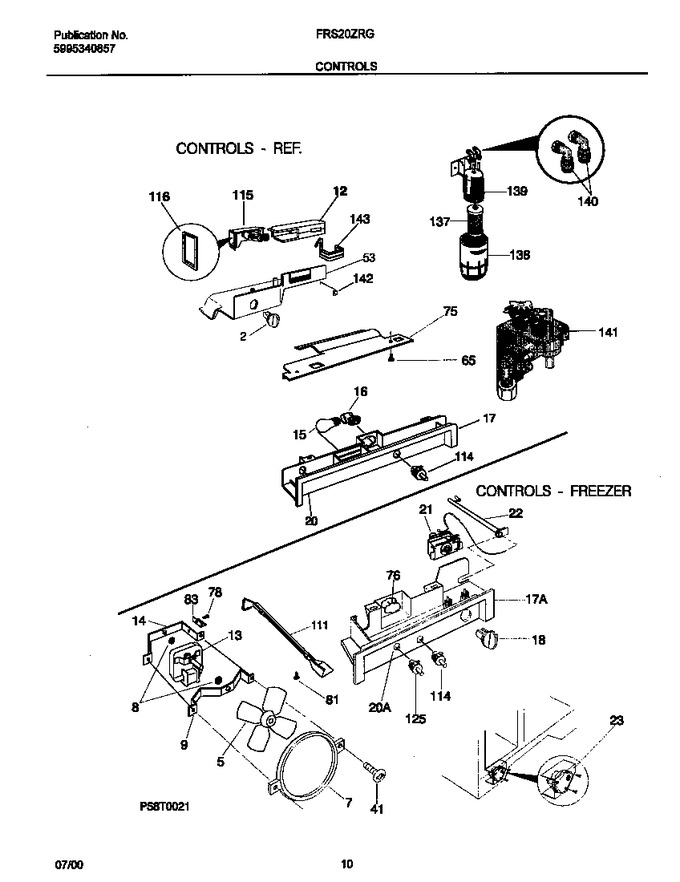

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215028605		Knob-damper Control		Appelez-nous	-
5	5308000010		Fan Blade, Red			Immediately	$ 49.03
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
12	215809600		Diffuser-air		Appelez-nous	-
13	215426200		Motor-evap Fan		Appelez-nous	-
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 5303289050)				$ 72.68
17	5303296808		Control Box, Refr		Appelez-nous	-
18	5303308568		Knob-temp Control, Frzr		Appelez-nous	-
20	5304413009		Label-control Box,refr		Appelez-nous	-
20	5303321926		Label-control Box, Frzr		Appelez-nous	-
21	5303300027		Control-temperature				$ 117.11
22	5303319683		Housing-temp Sensor, Plastic				$ 27.93
23	215846602		Timer-defrost,60 Hz ,120 V ,8 Hour/30 Min			Immediately	$ 28.20
41	5308000039		Screw		Appelez-nous	-
53	215809510		Box-damper Control		Appelez-nous	-
65	5303001361		Pin-mounting, Push-in, Plastic		Appelez-nous	-
75	218465101		Shield-light,refr		Appelez-nous	-
76	218225800		Cover-light Socket		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
111	5303289024		Wireway, Frzr		Appelez-nous	-
114	5303289051		Switch-light/lamp,white				$ 26.23
115	215011503		Damper Assy, W/seal				$ 318.20
116	215011400		Seal-damper, Foam		Appelez-nous	-
125	215334201		Switch-auger Kill,white				$ 31.87
137	215334201		Switch-auger Kill,white				$ 31.87
139	218893201		Housing-wtr Filter				$ 91.25
140	218518700		Elbow-water Tube				$ 61.22
141	218832401		Valve-water,dual Solenoid ,115 V ,w/nut				$ 121.34
142	218657701		Knob-indicator, Filter Replment		Appelez-nous	-
143	218696700		Heater-water Filter				$ 46.51
*04895	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
*04896	218731102		Tube,insulator ,pvc ,white ,on Temp Sensor		Appelez-nous	-
*04897	215277000		Cover-defrost Timer, Top		Appelez-nous	-
*04898	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*04899	5303289058		Shield-defrost Timr,btm		Appelez-nous	-
*04900	5303209814		Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg		Appelez-nous	-
*04901	218646000		Wiring Harness,filter Heater		Appelez-nous	-
138A	240434401		Cup-water Filter   (Replaces: 218893301)			Immediately	$ 81.14
138B	218904301		O-ring,wtr Filter Cup				$ 13.46
17A	5303321928		Control Box, Frzr		Appelez-nous	-
17B	215188300		Screw-control Box Mtg,hex Head ,8-15a X 1.000,refr/frzr		Appelez-nous	-
