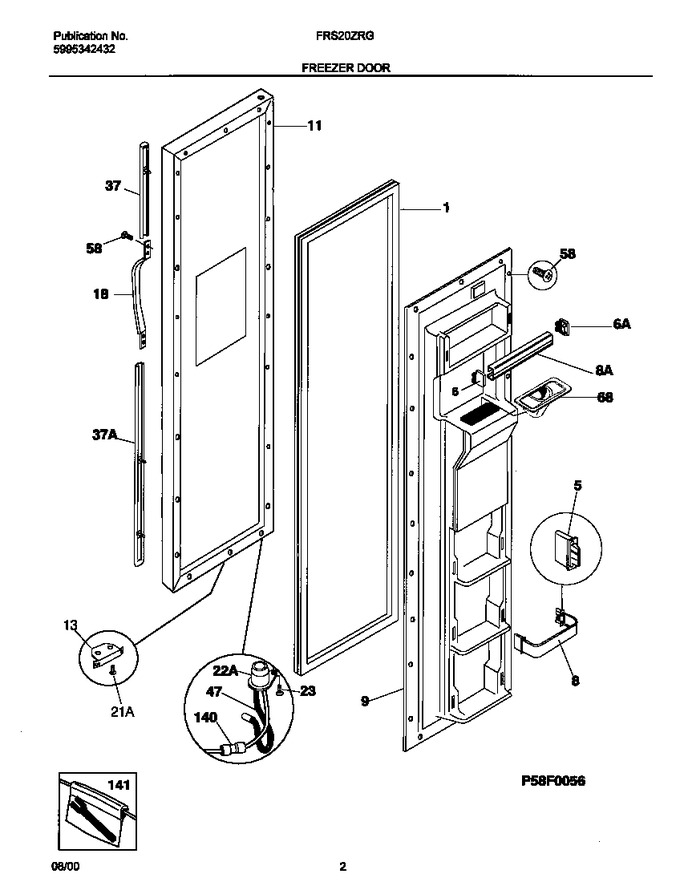

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734311		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
8	218807014		Rack-door,w/end Caps		Appelez-nous	-
8	215474049		Rack-door		Appelez-nous	-
9	218748601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918182		Panel-ext Frzr Door,almond ,w/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218762704		Handle-door, Almond		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	218958100		Screw,flat Hd ,8-32d X 1/2		Appelez-nous	-
37	215867074		Trim-handle, Almond, Upper, W/chrome Band, And Snap Lock				$ 76.91
37	215867073		Trim-handle,almond ,lower ,w/chrome Band,and Snap Locks				$ 12.55
47	218922901		Wiring Harness,frzr Door		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
68	218020600		Chute-ice		Appelez-nous	-
140	218922801		Elbow-water Tube				$ 55.28
141	218929601		Tool-push Connector		Appelez-nous	-
*24200	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
