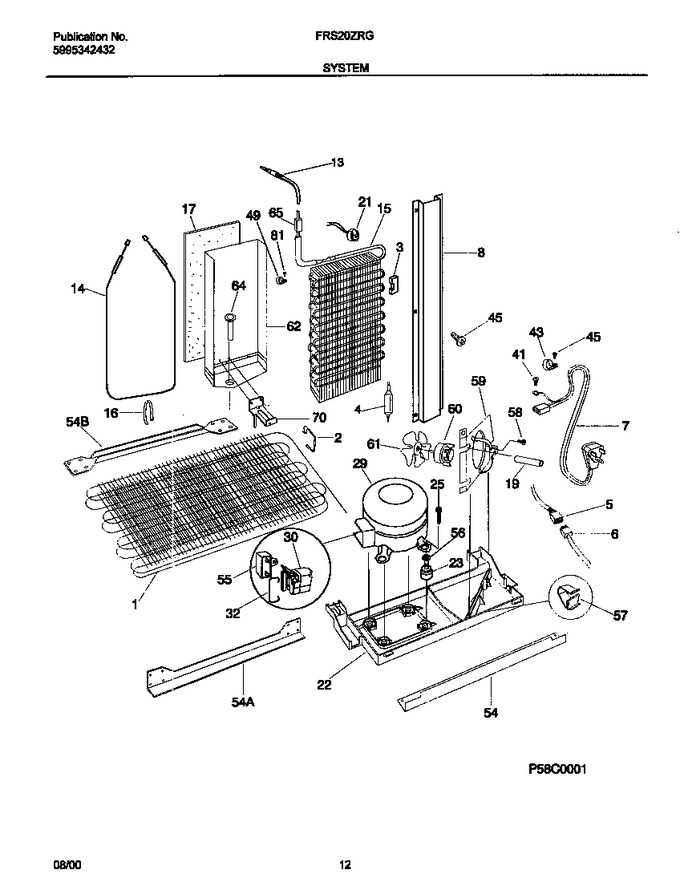

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218787700		Condenser		Appelez-nous	-
2	5303289029		Clip-cond Mtg. (4)		Appelez-nous	-
3	218679608		Block-evap Coil,styrofoam ,(1)		Appelez-nous	-
4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
5	218959901		Wiring Harness,main		Appelez-nous	-
6	218960201		Wiring Harness,machine Compt		Appelez-nous	-
7	215459201		Cord-electric Power				$ 66.47
8	218803400		Cover-wiring				$ 79.11
13	215006701		Heat Exchanger, Suction Line		Appelez-nous	-
14	218169804		Heater-defrost				$ 216.90
15	218955801		Evaporator,bundy		Appelez-nous	-
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	5304415968		Insulator-evap		Appelez-nous	-
19	218631200		Tube, Rubber		Appelez-nous	-
21	297216600		Thermostat-defrost   (Replaces: 218969902)			Immediately	$ 27.52
22	218811100		Base-compressor Mtg, (drain Pan)		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	218773500		Screw-compressor Mtg, Hex Washer Head, 10b X 1 1/4		Appelez-nous	-
29	5304478809		Compressor,r134a ,w/o Electricals   (Replaces: 218894801)			Immediately	$ 584.96
30	218721109		Starter-ptc		Appelez-nous	-
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
41	5308000039		Screw		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
49	218990801		Bracket-evap/cvr Mtg				$ 63.79
54	5303289311		Rail-compr Support		Appelez-nous	-
54	5303289027		Rail-cabinet Base,rear		Appelez-nous	-
54	5303289292		Rail-cabinet Base, Front		Appelez-nous	-
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
56	218769300		Insert-compressor Mtg		Appelez-nous	-
57	218247300		Clip-wiring Harness		Appelez-nous	-
58	218956901		Screw-cond Fan Mtr,hex Head ,8-36 X 7/16		Appelez-nous	-
59	218956601		Shroud-cond Fan Mtr		Appelez-nous	-
60	218956401		Motor-condenser Fan		Appelez-nous	-
61	218956501		Blade-condenser Fan		Appelez-nous	-
62	215048202		Trough-drain,w/shield Assy ,& 17 Insulator		Appelez-nous	-
64	5303289063		Tube-drain		Appelez-nous	-
65	5303289301		Spacer-tube				$ 35.39
70	5303289041		Bracket-evap/cvr Mtg		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*24223	5303208866		Spacer-cond Tube,black				$ 1.94
*24224	5303289026		Spacer Tube		Appelez-nous	-
*24225	218679605		Block-evap Coil,2.05 Wide ,styrofoam ,(2)		Appelez-nous	-
*24226	215005200		Wiring Harness,refr Controls		Appelez-nous	-
*24227	218815101		Wiring Harness,frzr Controls		Appelez-nous	-
*24228	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
*24229	218754500		Screw,hex Hd Ser Wshr ,8-18 X 0.375		Appelez-nous	-
*24230	215732700		Screw,pan Head ,10-12a X 0.50		Appelez-nous	-
*24231	218956701		Nut,speed ,fan Blade		Appelez-nous	-
*24232	218956801		Grommet-silencer		Appelez-nous	-
*24233	218646000		Wiring Harness,filter Heater		Appelez-nous	-
*24234	5303917166		Hot Tube Repair Kit, Service		Appelez-nous	-
43A	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
43B	5303001199		Clamp				$ 65.92
