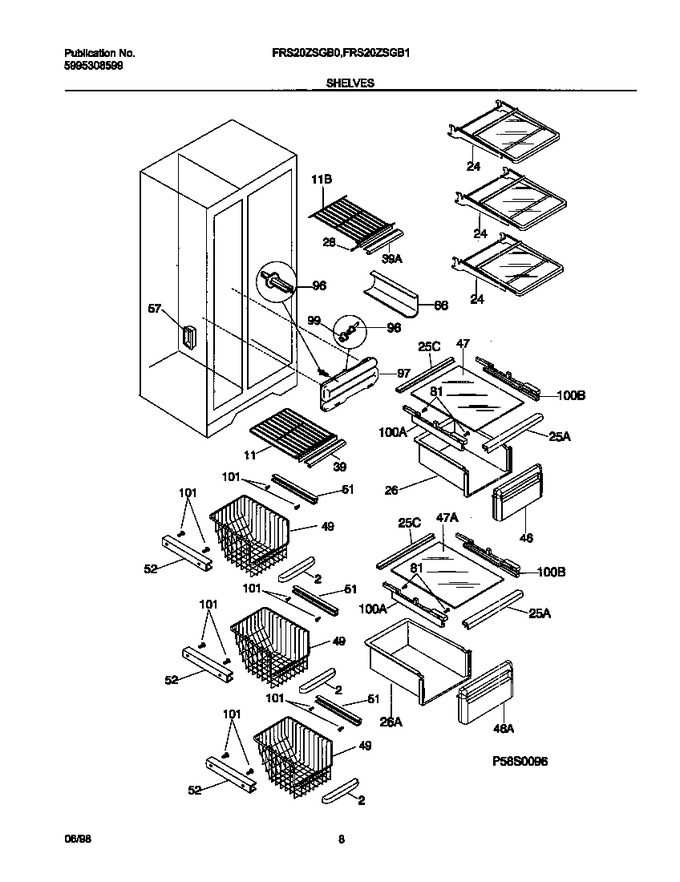

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	218747101		Handle-frzr Basket		Appelez-nous	-
11	218298005		Shelf, Freezer, Sliding, Wire				$ 137.83
24	218746001		Shelf-``spill-safe``, Sliding, (3)		Appelez-nous	-
25	218015401		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
25	218015301		Trim-storage Pan Cvr, Snap-on, Front				$ 48.25
26	5303288968		Pan-storage, Lower				$ 204.84
26	5303288971		Pan-storage, Upper   (Replaces: 5303306579)				$ 171.91
28	08013638		End Cap-shelf, Protector, Lower Fzr Shelf		Appelez-nous	-
39	215217562		Trim, Frzr Shelf				$ 9.60
39	215217563		Trim-frzr Shelf		Appelez-nous	-
46	218278301		Front-storage Pan, Upper		Appelez-nous	-
46	218278302		Front-storage Pan, Lower		Appelez-nous	-
47	218498118		Insert-pan Cover, Glass, W/graphics		Appelez-nous	-
47	215723551		Insert-pan Cover,glass ,clear ,lower				$ 75.72
49	218748301		Basket-sliding, (3)		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
66	241657701		Rack-wine   (Replaces: 5304402116)				$ 57.41
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank   (Replaces: 218871301)				$ 121.63
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
*40579	215328300		Clip-shelf				$ 14.02
100A	218015501		Support-pan Cover, Lh				$ 37.26
100B	218015601		Support-pan Cover, Rh				$ 55.18
11A	5303288963		Shelf-freezer, Fixed Wire		Appelez-nous	-
11B	218159700		Spacer-shelf		Appelez-nous	-
