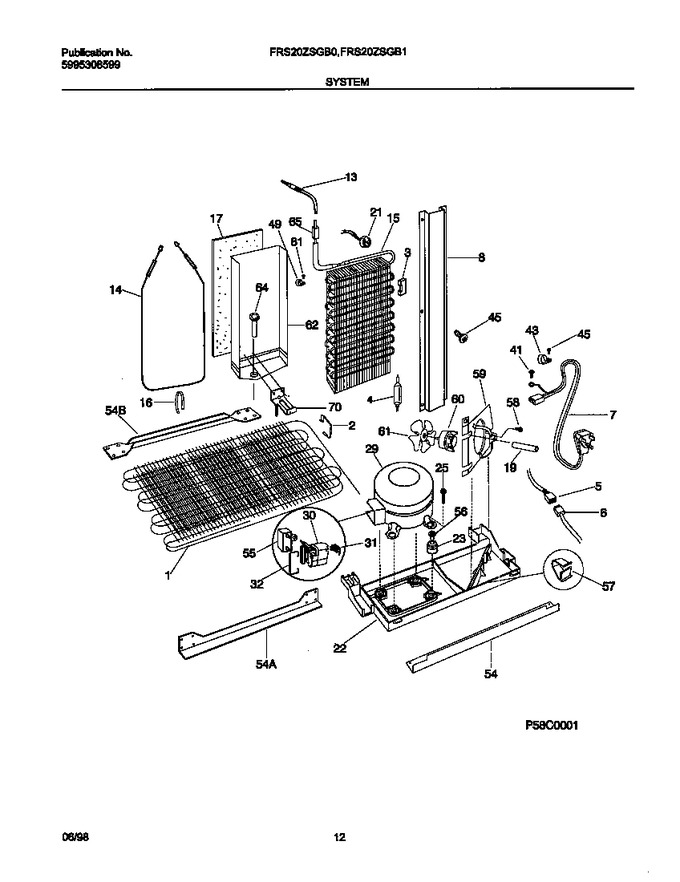

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218787700 | Condenser |
|
- | |||||
| 2 | 5303289029 | Clip-cond Mtg. (4) |
|
- | |||||
| 3 | 218679603 | Block-evap Coil,styrofoam ,(2) |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 218541000) |
|
Immediately | $ 31.67 | ||||
| 5 | 218646100 | Harness-wiring, Main |
|
- | |||||
| 6 | 218872701 | Harness-wiring |
|
$ 174.62 | |||||
| 7 | 215459201 | Cord-electric Power |
|
$ 66.47 | |||||
| 8 | 218803400 | Cover-wiring |
|
$ 79.11 | |||||
| 13 | 215746800 | Heat Exchanger, Suction Line |
|
$ 261.45 | |||||
| 14 | 218169801 | Heater-defrost |
|
- | |||||
| 15 | 218691302 | Evaporator, R134a System |
|
$ 756.11 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum |
|
Immediately | $ 59.82 | ||||
| 17 | 5303289042 | Insulator-evap |
|
- | |||||
| 19 | 218631200 | Tube, Rubber |
|
- | |||||
| 21 | 297216600 | Thermostat-defrost (Replaces: 218673001) |
|
Immediately | $ 27.52 | ||||
| 22 | 218811100 | Base-compressor Mtg, (drain Pan) |
|
- | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 25 | 218773500 | Screw-compressor Mtg, Hex Washer Head, 10b X 1 1/4 |
|
- | |||||
| 29 | 5304478809 | Compressor, R134a System, W/electricals (Replaces: 5303917934) |
|
Immediately | $ 584.96 | ||||
| 30 | 216008904 | Starter-ptc |
|
- | |||||
| 31 | 5303321892 | Overload Protector |
|
$ 75.34 | |||||
| 32 | 218762900 | Wire-bale |
|
- | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 49 | 215506900 | Bracket-evap Mtg |
|
- | |||||
| 54 | 5303289311 | Rail-compr Support |
|
- | |||||
| 54 | 5303289027 | Rail-cabinet Base,rear |
|
- | |||||
| 54 | 5303289292 | Rail-cabinet Base, Front |
|
- | |||||
| 55 | 218764601 | Capacitor-run |
|
- | |||||
| 56 | 218769300 | Insert-compressor Mtg |
|
- | |||||
| 57 | 218247300 | Clip-wiring Harness |
|
- | |||||
| 58 | 215004600 | Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2) |
|
- | |||||
| 59 | 5303289031 | Shroud-cond Fan Mtr |
|
- | |||||
| 60 | 215501800 | Motor-condenser Fan |
|
- | |||||
| 61 | 5303289032 | Blade-cond Fan |
|
- | |||||
| 62 | 215048201 | Trough-drain, W/shield Assy, & 17 Insulator |
|
- | |||||
| 64 | 5303289063 | Tube-drain |
|
- | |||||
| 65 | 5303289301 | Spacer-tube |
|
$ 35.39 | |||||
| 70 | 5303289041 | Bracket-evap/cvr Mtg |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *40590 | 5303289026 | Spacer Tube |
|
- | |||||
| *40591 | 215005200 | Harness-wiring,refr Controls |
|
- | |||||
| *40592 | 218646000 | Harness-wiring, Filter Heater |
|
- | |||||
| *40593 | 218815101 | Harness-wiring,frzr Controls |
|
- | |||||
| *40594 | 218754500 | Screw,hex Hd Ser Wshr ,8-18 X 3/8 |
|
- | |||||
| *40595 | 3206414 | Tube-inlet |
|
$ 31.61 | |||||
| *40596 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| *40597 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| *40598 | 218769200 | Screw,hx Wshr Hd Spec ,6-32 X .5 |
|
- | |||||
| *40599 | 5300141713 | Screw,hex Wshr Hd ,8-32 X .625 ,spec |
|
- | |||||
| *40600 | 5304455852 | Screw,hex Wshr Hd,8-15(a) X 1 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| *40601 | 215004700 | Nut,speed |
|
$ 3.78 | |||||
| *40602 | 215223700 | Grommet-silencer |
|
- | |||||
| *40603 | 5303917166 | Hot Tube Repair Kit, Service |
|
- |
