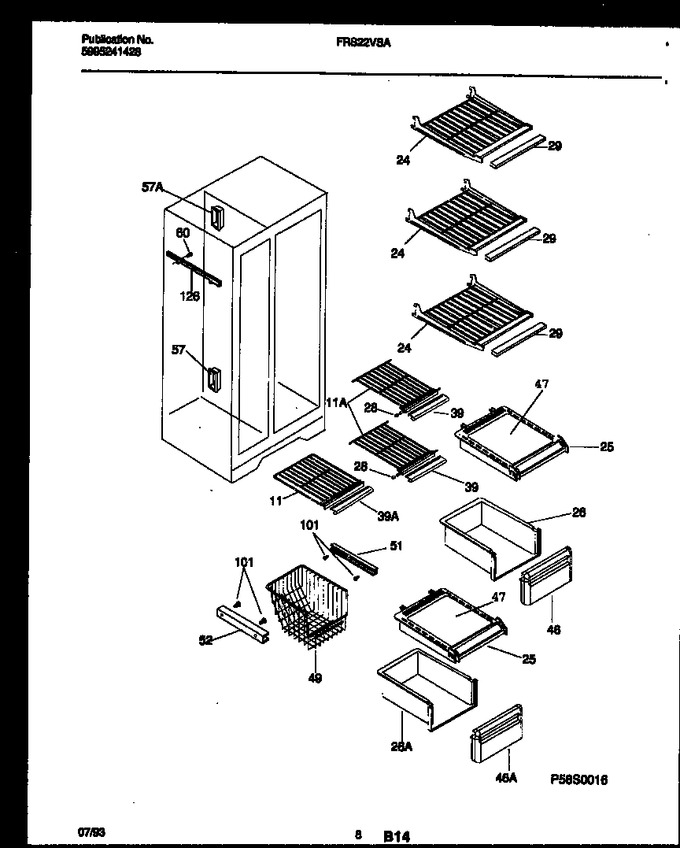

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5303289518		Shelf-freezer,sliding Wire		Appelez-nous	-
24	5303296674		Shelf-cantilever,refr,(3)		Appelez-nous	-
25	5303289587		Cover-storage Pan, Upper & Lower, (2)		Appelez-nous	-
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		Cap-protector		Appelez-nous	-
29	215217559		Trim-refr Shelf,(3)		Appelez-nous	-
39	215217558		Trim-frzr Shelf, (2)		Appelez-nous	-
46	5303300432		Front-storage Pan,upper		Appelez-nous	-
47	5303289386		Insert-pan Cover, Glass, With White Dots		Appelez-nous	-
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
60	5308010253		Screw		Appelez-nous	-
101	5308007097		Screw, Cr Truss Head, 8-15(a) X 3/4		Appelez-nous	-
126	215205400		Rail-auger Bucket,lh				$ 64.00
*83606	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303289504		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
126A	215205200		Rail-auger Bucket, Rh (non-illustrated)		Appelez-nous	-
25A	5303289586		Trim-storage Pan Cvr (non-illustrated)		Appelez-nous	-
26A	5303289501		Pan-storage,lower				$ 164.85
39A	215217543		Trim-frzr Shelf		Appelez-nous	-
46A	5303300431		Front-storage Pan, Lower		Appelez-nous	-
47A	5303289387		Insert-pan Cover, Glass, Clear (non-illustrated)		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-
