02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


08 - Ice Door, Dispenser And Water Tanks


09 - Ice Dispenser


10 - Ice Maker And Installation Parts

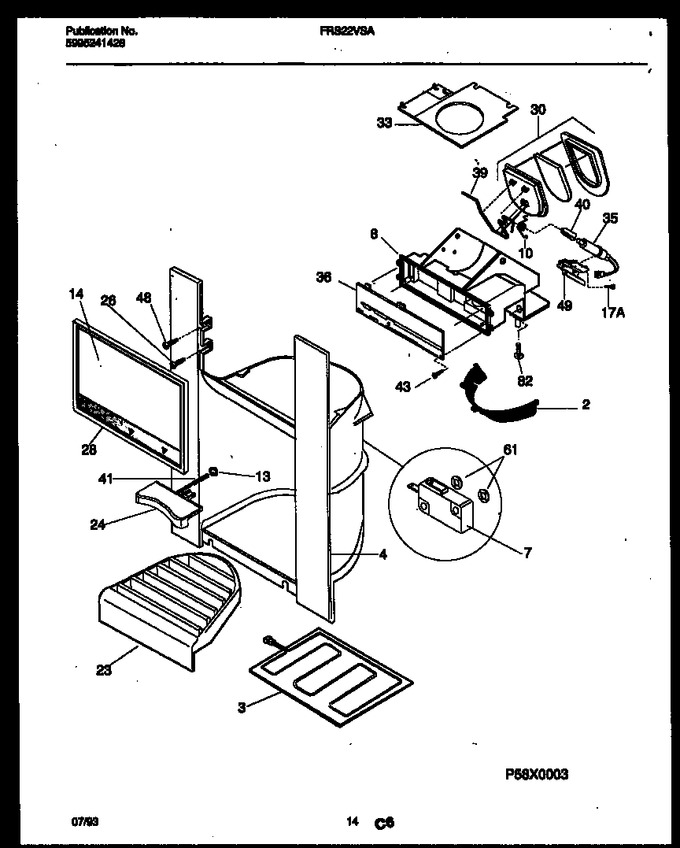

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215732101		Deflector-ice Disp,white		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	5303298524		Housing-dispenser,white		Appelez-nous	-
7	215765600		Switch-actuator, Micro		Appelez-nous	-
8	215968500		Module-dispenser		Appelez-nous	-
10	215793600		Spring, Dispenser Door		Appelez-nous	-
13	215748101		Ring-snap,actuator				$ 50.09
14	215766101		Label-module Cover, White		Appelez-nous	-
23	5303297844		Drip Tray,white				$ 50.03
24	215766301		Actuator,white		Appelez-nous	-
26	215503203		Screw,hilo Phil Pn Hd,10 X 1/2   (Replaces: 215503200)			Immediately	$ 7.09
28	5303297846		Cover-module,white		Appelez-nous	-
30	215753600		Door Assy-ice,w/gasket,insul		Appelez-nous	-
33	215851100		Heater-disp Throat		Appelez-nous	-
35	215793900		Heat Motor		Appelez-nous	-
36	215254400		Cover-pc Board		Appelez-nous	-
39	215793700		Wire-ice Door		Appelez-nous	-
40	215794300		Yoke-heat Motor		Appelez-nous	-
41	215765400		Spring-actuator				$ 78.96
43	215760300		Screw,4 X 3/8				$ 9.35
48	5303001083		Screw, Tw Hx Cr Pan Hd, 8-16-1/2		Appelez-nous	-
49	215794000		Bracket-heat Motor				$ 34.81
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw, Cr Plask, 8-10 X 1/2		Appelez-nous	-
*83614	215944300		Shield-micro Switch				$ 58.85
*83614	215923400		Washer-flat		Appelez-nous	-
*83614	215968600		Harness-wiring, Disp/ice Only		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
