SELECT A DIAGRAM

01 - Electrical Components


02 - Lower Oven Cabinet Assy


03 - Oven Door Parts


04 - Page 1

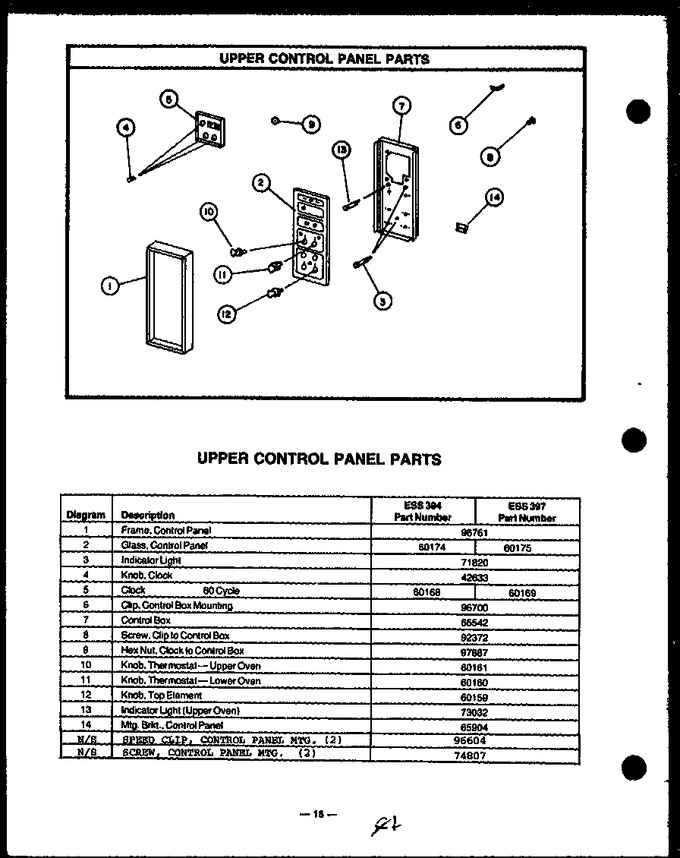

05 - Upper Control Panel Parts


06 - Upper Oven Door Parts


07 - Upper Oven Electrical Components


08 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0096761		Trim Frame, Control Panel		Appelez-nous	-
2	60175		Glass, Control Panel		Appelez-nous	-
3	Y71820		Indicator Light		Appelez-nous	-
4	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
5	Y60169		Clock, Automatic, 60 Cycle		Appelez-nous	-
6	Y0096700		Mtg Clips, Control Box		Appelez-nous	-
7	Y65542		Control Box		Appelez-nous	-
8	0092372		Screw 6x1/4 Phil Pan Hd		Appelez-nous	-
9	M0282005		Nut K   (Replaces: Y0097887)				$ 7.07
10	60161		Knob, Thermostat - Upper Oven				$ 60.39
11	45029		Cap,end-r.h.-bronze   (Replaces: 60160)				$ 10.27
12	60159		Cap,end-l.h.-bronze		Appelez-nous	-
13	73032		Glass Splasher		Appelez-nous	-
14	Y65904		Mtg. Brkt., Control Panel		Appelez-nous	-
NI	Y0096604		Nut, Type ``u``		Appelez-nous	-
NI	74807		Screw, Tapping		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
