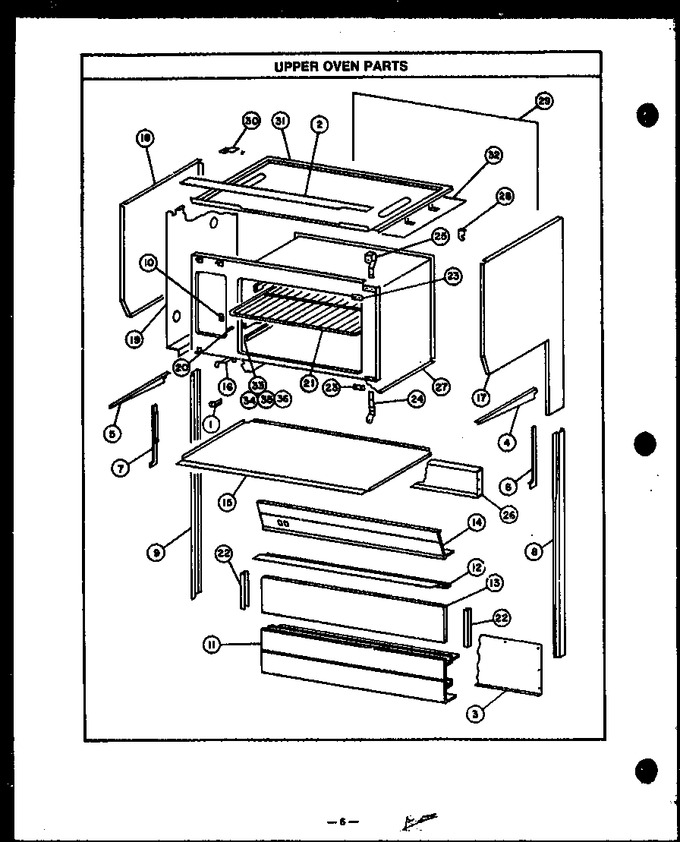

ESS397 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	Y0099913	Bracket	Appelez-nous	-
2	73061	Catch	Appelez-nous	-
3	Y00000000	See Note Oven Bottom - Gray, Part Of Item No. 29	Appelez-nous	-
4	Y71972	Trim Strip, R.h.	Appelez-nous	-
5	Y71973	Trim Strip, L.h.	Appelez-nous	-
6	Y0091477	Trim Support	Appelez-nous	-
7	Y0091478	Trim Support	Appelez-nous	-
8	71096	Support Channel - R.h.	Appelez-nous	-
9	71095	Support Channel - L.h.	Appelez-nous	-
10	Y75826	Plate, Door Strike	Appelez-nous	-
11	Y71781	Lower Trim, Splashplate	Appelez-nous	-
12	Y71971	Rear Trim	Appelez-nous	-
13	Y71968	Glass, Splashplate	Appelez-nous	-
14	Y62976	Decorative Panel	Appelez-nous	-
15	71317-3	Jacket Bottom, Gray	Appelez-nous	-
16	71092	Door Guide	Appelez-nous	-
17	71087H	Jacket End - R.h., Harvest	Appelez-nous	-
17	71087L	Jacket End - R.h., Almond	Appelez-nous	-
17	71087W	Jacket End - R.h., White	Appelez-nous	-
18	71086L	Jacket End - L.h., Almond	Appelez-nous	-
18	71086H	Jacket End - L.h., Harvest	Appelez-nous	-
18	71086W	Jacket End - L.h., White	Appelez-nous	-
19	Y0094391	Sub 60714, Retainer, Insul.	Appelez-nous	-
20	Y78034	Strike, Oven Door	Appelez-nous	-
21	78001	Oven Rack	Appelez-nous	-
22	Y71954	Trim, Splashplate	Appelez-nous	-
23	0093625	Cover Plate Front Frame	Appelez-nous	-
24	Y0094356	Hinge, Bottom	Appelez-nous	-
25	Y0094357	Hinge, Top	Appelez-nous	-
26	Y91508	Cover, Wire	Appelez-nous	-
27	W10126776	Wrapper	Appelez-nous	-
28	73057	Switch	Appelez-nous	-
29	Y62955	Manual,service-ee,eg	Appelez-nous	-
30	73060	Oven Vent		Immediately	$ 24.25
31	74091	Jacket Top	Appelez-nous	-
32	78701	Insulation Retainer, Jacket To	Appelez-nous	-
33	71146-3	Panel, Side Rh	Appelez-nous	-
34	71447-3	Side Panel, L.h. - Gray	Appelez-nous	-
35	78172-3	Sub 78172cg Rear Panel	Appelez-nous	-
36	71064	Panel, Surface Light		Immediately	$ 26.00
NI	Y79740	Clip, Spring	Appelez-nous	-
