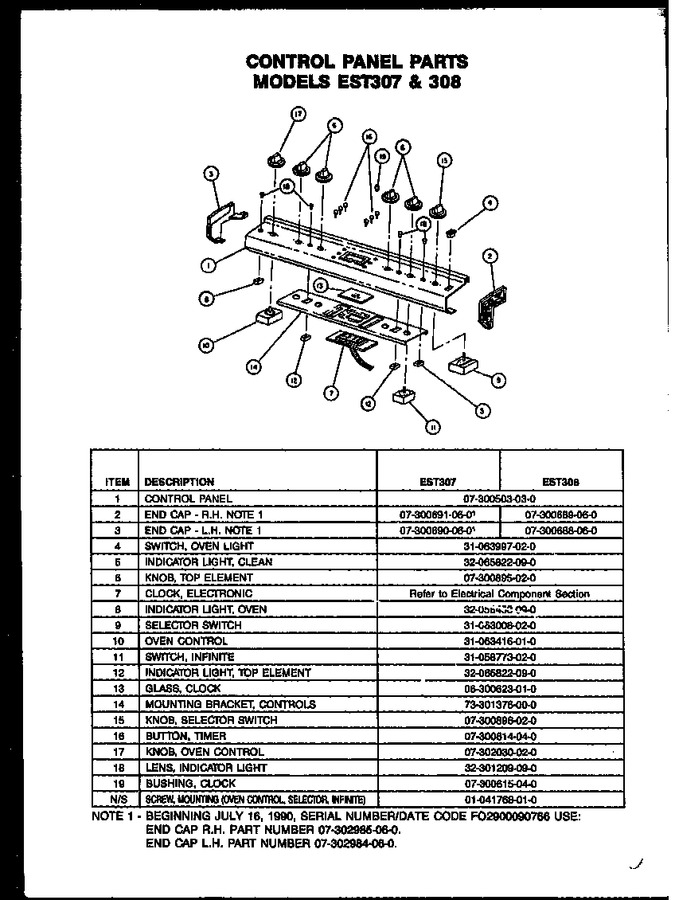

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0300503		Panel, Control		Appelez-nous	-
2	0302985		End Cap, Control Panel, Rh		Appelez-nous	-
3	0302984		End Cap, Control Panel, Lh		Appelez-nous	-
4	Y0063997		Switch, Rocker		Appelez-nous	-
5	0065822		Light Indicator		Appelez-nous	-
6	Y0300895		Kit, Top Element Knob		Appelez-nous	-
7	Y00000000		See Note Clock Electronic -- (refer To Electrical Component Section)		Appelez-nous	-
8	Y0058453		Indicator Light		Appelez-nous	-
9	Y0063008		Switch, Selector		Appelez-nous	-
10	Y0063416		Thermostat		Appelez-nous	-
11	W11121639		Switch,inf(240p-1243)   (Replaces: Y0058773)				$ 149.17
12	0065822		Light Indicator		Appelez-nous	-
13	0300623		Glass, Clock		Appelez-nous	-
14	Y0301376		Mounting Bracket, Controls		Appelez-nous	-
15	0300896		Knob, Selector		Appelez-nous	-
16	Y0300614		Button, W/cushion		Appelez-nous	-
17	0302030		Knob, Thermostat		Appelez-nous	-
18	Y0301209		Lens, Indicator Light, Red		Appelez-nous	-
19	Y0300615		Sub 301481, Bushing, Clock		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
