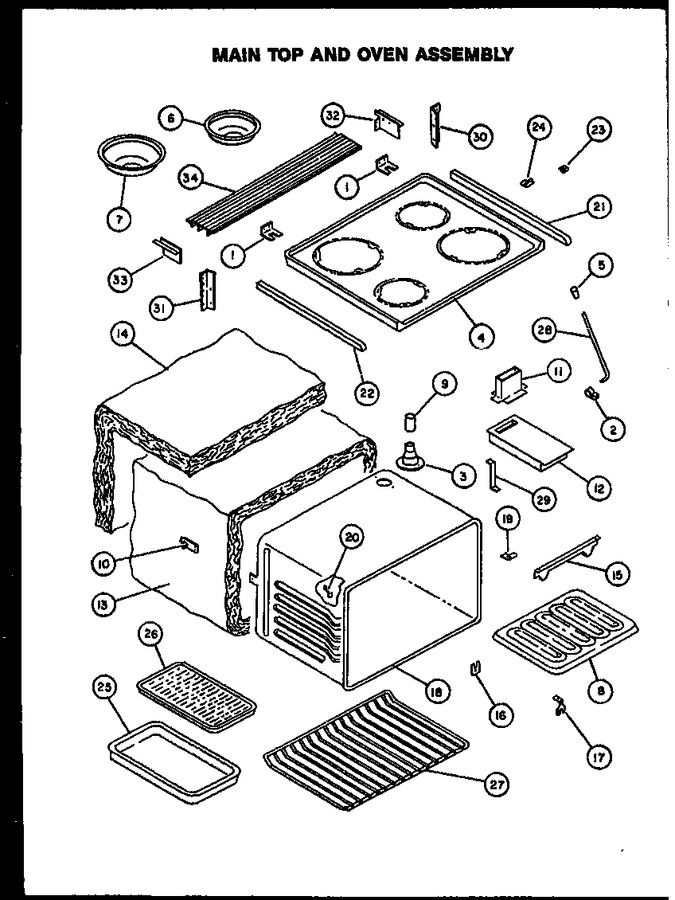

01 - Cabinet Assy


02 - Cabinet Assy


03 - Control Panel Parts


04 - Electrical Components


05 - Oven Door Parts


06 - Page 3


07 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0059260		Hinge, Upper Main Top		Appelez-nous	-
2	Y0041869		Timerman		Appelez-nous	-
3	Y0063337		Smoke Eliminator		Appelez-nous	-
4	W10124573		Main Top White		Appelez-nous	-
5	Y0042002		Rod Tip, Rubber		Appelez-nous	-
6	Y0300728		Bowl, Drip (6`` W/hole-blk)		Appelez-nous	-
7	Y0300730		Bowl, Burner 8`` (black)		Appelez-nous	-
8	Y0061781		Reflector, Broil Element		Appelez-nous	-
9	0060633		Tube, Vent Extension		Appelez-nous	-
10	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
11	Y0059431		Flue Box, Rear		Appelez-nous	-
12	Y0060627		Flue Box		Appelez-nous	-
13	0300973		Insulation, Wrapper		Appelez-nous	-
14	Y0300974		Insulation, Rear		Appelez-nous	-
15	Y0061557		Bracket, Reflector Mounting		Appelez-nous	-
17	0061556		Bracket, Mounting		Appelez-nous	-
18	W10124600		Oven Shell		Appelez-nous	-
19	0300278		Chip Cover		Appelez-nous	-
21	Y0301417		Trim, Top, Rh		Appelez-nous	-
22	Y0301416		Trim, Top, Lh		Appelez-nous	-
23	Y0096604		Nut, Type ``u``		Appelez-nous	-
24	0071203		Wire Clamp		Appelez-nous	-
25	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
26	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
27	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
28	Y0042737		Prop Rod Gt-483-583		Appelez-nous	-
29	Y0060312		Bracket, Support		Appelez-nous	-
30	Y0058912		Support, Backguard Rt		Appelez-nous	-
31	Y0058913		Support, Backguard Lt		Appelez-nous	-
32	Y0301414		End Cap, Rh		Appelez-nous	-
33	Y0301415		End Cap, Lh		Appelez-nous	-
34	Y0301413		Lo Back Rail		Appelez-nous	-
NI	Y0301220		Backrail 4``		Appelez-nous	-
NI	Y0042518		End Caps 4`` Pyro Th		Appelez-nous	-
NI	Y0301219		Lo Backrail 4``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
