| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

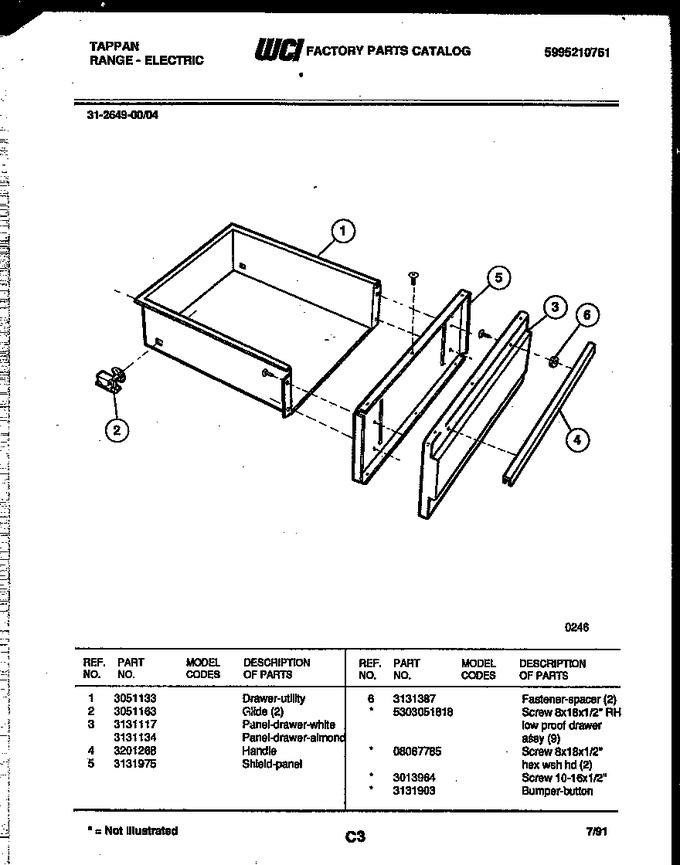

| 1 | 3051133 | Drawer, Utility |
|
- | |||||
| 2 | 3051163 | Glide (2) |
|
Immediately | $ 19.41 | ||||
| 3 | 3131134 | Panel-drawer-almond |
|
- | |||||
| 3 | 3131117 | Panel-drawer, White |
|
- | |||||
| 4 | 3201268 | Handle |
|
- | |||||
| 5 | 3131975 | Shield-panel |
|
- | |||||
| 6 | 3131387 | Fastener-spacer (2) |
|
- | |||||
| *54118 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *54118 | 3013964 | Screw 10-16 X 1/2`` |
|
- | |||||
| *54118 | 08067785 | Screw 8 X 18 X 1/2`` Hex Wsh Hd (2) |
|
- | |||||
| *54118 | 5303051818 | Screw 8 X 18 X 1/2`` Rh Low Proof Drawer Assy (9) |
|
- |
