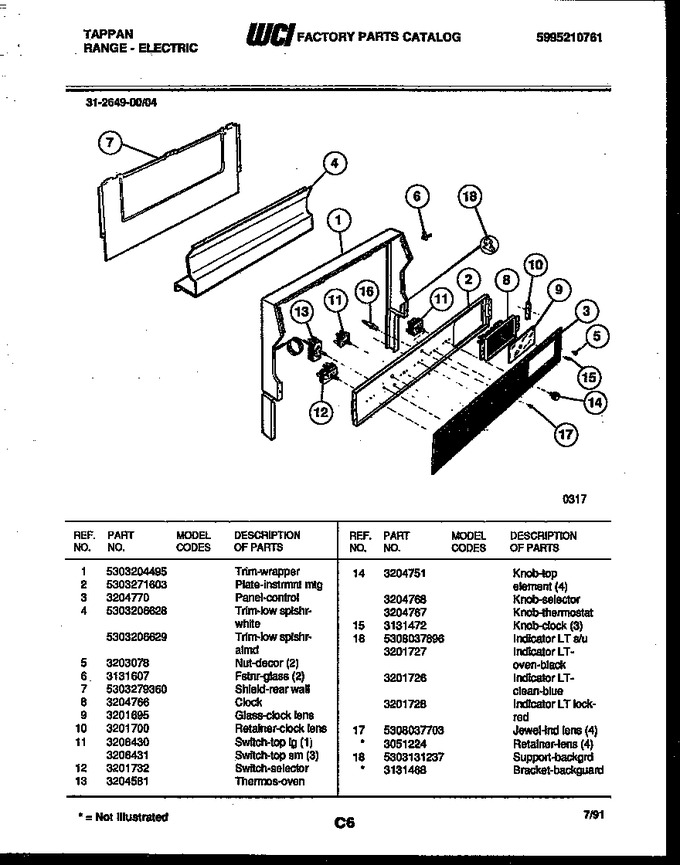

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303204495 | Trim-wrapper |
|
- | |||||
| 2 | 5303271603 | Plate-instrmnt Mtg |
|
- | |||||
| 3 | 3204770 | Panel-control |
|
- | |||||
| 4 | 5303206629 | Trim-low Splshr-almd |
|
- | |||||
| 4 | 5303206628 | Trim-low Splshr-white |
|
- | |||||
| 5 | 3203078 | Nut-decor (2) |
|
- | |||||
| 6 | 3131607 | Fstnr Glass (2) |
|
- | |||||
| 7 | 5303279360 | Shield-rear Wall |
|
- | |||||
| 8 | 3204766 | Clock |
|
- | |||||
| 9 | 3201695 | Glass-clock Lens |
|
- | |||||
| 10 | 3201700 | Retainer Clock Lens |
|
- | |||||
| 11 | 3206430 | Switch-top Lg (1) |
|
- | |||||
| 12 | 3201732 | Switch-selector |
|
- | |||||
| 13 | 3204581 | Thermos-oven |
|
- | |||||
| 14 | 3204751 | Knob-top Element (4) |
|
- | |||||
| 15 | 3131472 | Knob-clock (3) |
|
- | |||||
| 16 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 17 | 5308037703 | Jewel-ind Lens (4) |
|
- | |||||
| 18 | 5303131237 | Support-backgrd |
|
- | |||||
| *54124 | 3131468 | Bracket, Backguard |
|
- | |||||
| 11A | 3206431 | Switch - Top Sm (3) |
|
- | |||||
| 14A | 3204768 | Knob - Selector |
|
- | |||||
| 14B | 3204767 | Knob-thermostat |
|
- | |||||
| 16A | 3201727 | Indicator Lt. Oven-black |
|
- | |||||
| 16B | 3201726 | Indicator Lt Clean (blue) |
|
- | |||||
| 16C | 3201728 | Indicator Lt Lock (red) |
|
- | |||||
| 17A | 3051224 | Retainer, Lens (4) (non-illustrated) |
|
- |
