| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
215734313 |
 |
Gasket-frzr Door, White, Magnetic |
|
|
|
$ 244.78 |
|
|
| 6 |
5303297813 |
|
Support-door Rack, Lh |
|
|
|
$ 49.77 |
|
|
| 9 |
215426901 |
|
Panel-inner Door, Frzr |
|
Appelez-nous
|
- |
|
|
|
| 11 |
215202701 |
|
Panel-frzr Door, White, W/ Foam Insulatn |
|
Appelez-nous
|
- |
|
|
|
| 13 |
5303289522 |
 |
Door Stop |
|
|
|
$ 40.17 |
|
|
| 17 |
218025301 |
|
Handle End, White |
|
Appelez-nous
|
- |
|
|
|
| 18 |
218025201 |
|
Handle-door, White, Soft Grip |
|
Appelez-nous
|
- |
|
|
|
| 21 |
5308000039 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 22 |
215615300 |
|
Bushing-door,bronze |
|
Appelez-nous
|
- |
|
|
|
| 23 |
5303001020 |
|
Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
Appelez-nous
|
- |
|
|
|
| 37 |
215117404 |
|
Trim-handle, 13.69``, White, Upper |
|
Appelez-nous
|
- |
|
|
|
| 38 |
215117301 |
|
Band-decorative,handle |
|
Appelez-nous
|
- |
|
|
|
| 47 |
215667300 |
|
Harness-wiring, Frzr Door |
|
Appelez-nous
|
- |
|
|
|
| 48 |
5308000200 |
|
Nut, 7/16 X 20, Nylon |
|
Appelez-nous
|
- |
|
|
|
| 49 |
215940002 |
|
Bin-door, 9.84`` Wide |
|
Appelez-nous
|
- |
|
|
|
| 58 |
5308002748 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 63 |
215117207 |
|
Rail-handle Trim Mtg, 26.43``, Lower |
|
Appelez-nous
|
- |
|
|
|
| 68 |
218036400 |
|
Chute-ice |
|
Appelez-nous
|
- |
|
|
|
| 69 |
215341900 |
|
Connector-door Harn |
|
Appelez-nous
|
- |
|
|
|
| 84 |
5308010289 |
|
Elbow-water Tube |
|
|
|
$ 45.84 |
|
|
| *10600 |
5303917276 |
|
Insulation-door, Fiberglass, (bulk) |
|
|
|
$ 330.91 |
|
|
| 21A |
215218600 |
|
Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
Appelez-nous
|
- |
|
|
|
| 22A |
215598900 |
|
Washer-flat, .691 X 1 X .05, Zinc, I & W Hinge Brkt (non-illustrated) |
|
Appelez-nous
|
- |
|
|
|
| 37A |
215117403 |
|
Trim-handle, 29.41``, White, Lower |
|
Appelez-nous
|
- |
|
|
|
| 63A |
215117201 |
|
Rail-handle Trim Mtg, 11.95``, Upper |
|
Appelez-nous
|
- |
|
|
|
| 6A |
5303297814 |
|
Support-door Rack, Rh |
|
|
|
$ 52.50 |
|
|
| 8A |
215474025 |
|
Rack-door |
|
Appelez-nous
|
- |
|
|
|

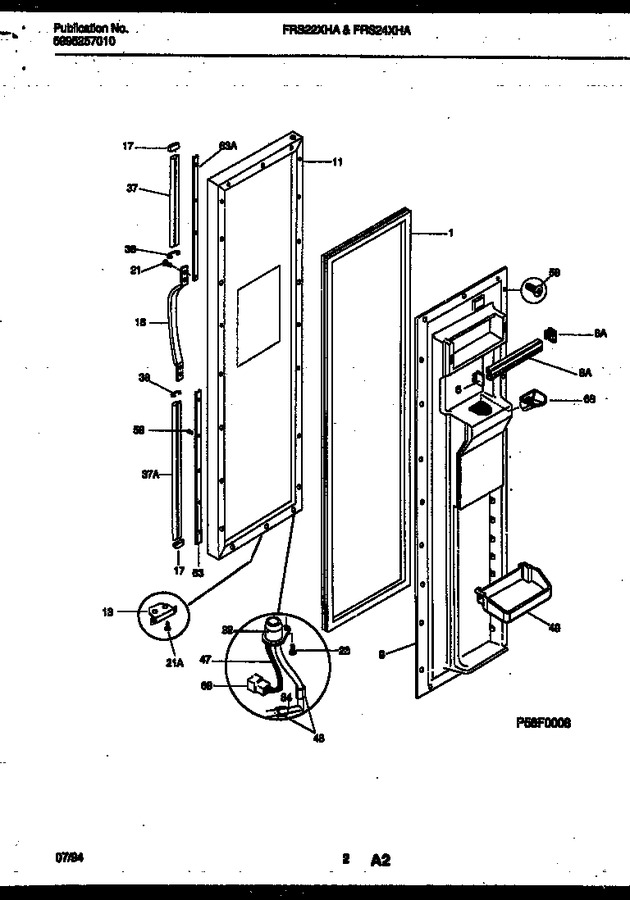

View Diagram in Separate Window
