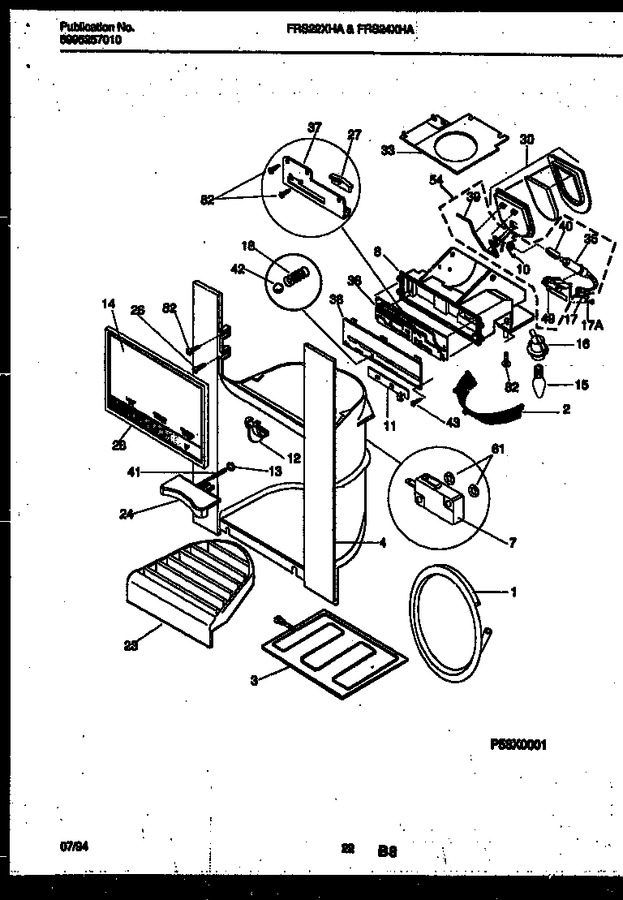

SELECT A DIAGRAM

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Refrigerator Control Assembly, Damp


08 - Refrigerator Control Assembly, Damp


09 - System And Automatic Defrost Parts


10 - System And Automatic Defrost Parts


11 - Ice Door, Dispenser And Water Tanks


12 - Ice Door, Dispenser And Water Tanks


13 - Ice Dispenser


14 - Ice Dispenser


15 - Ice Maker And Installation Parts


16 - Ice Maker And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215765400		Spring-actuator				$ 78.96
42	215756000		Ball		Appelez-nous	-
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
54	5303917444		Heat Motor Kit, 115v		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*10603	215923400		Washer-flat		Appelez-nous	-
*10603	215781700		Clip-tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
