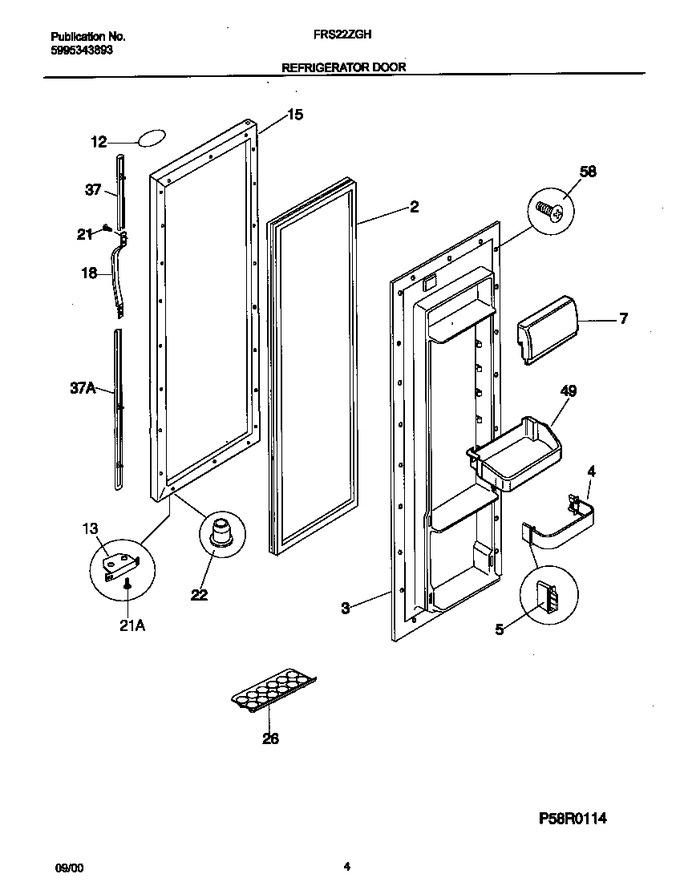

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734324		Gasket-refr Door, Black, Magnetic				$ 242.92
3	215390401		Panel-inner Door,refr		Appelez-nous	-
4	218807018		Rack-door,w/end Caps		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5304404909		Door-dairy		Appelez-nous	-
12	218364006		Frame-nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303918226		Panel-ext Ref Door,black ,w/foam Insulatn		Appelez-nous	-
18	218025205		Handle-door, Metallic Gray, Soft Grip		Appelez-nous	-
21	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
37	218811609		Trim-handle,metallic Gray ,w/dec Gold Band,& Snap-on Loc				$ 59.68
37	218811610		Trim-handle,metallic Gray ,w/dec Gold Band,& Snap-on Loc		Appelez-nous	-
49	218592307		Bin-door, Gallon, With Trim		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*48401	215008606		Label-nameplate,black		Appelez-nous	-
*48404	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*48405	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676003		Band-decorative, Gold				$ 47.11
