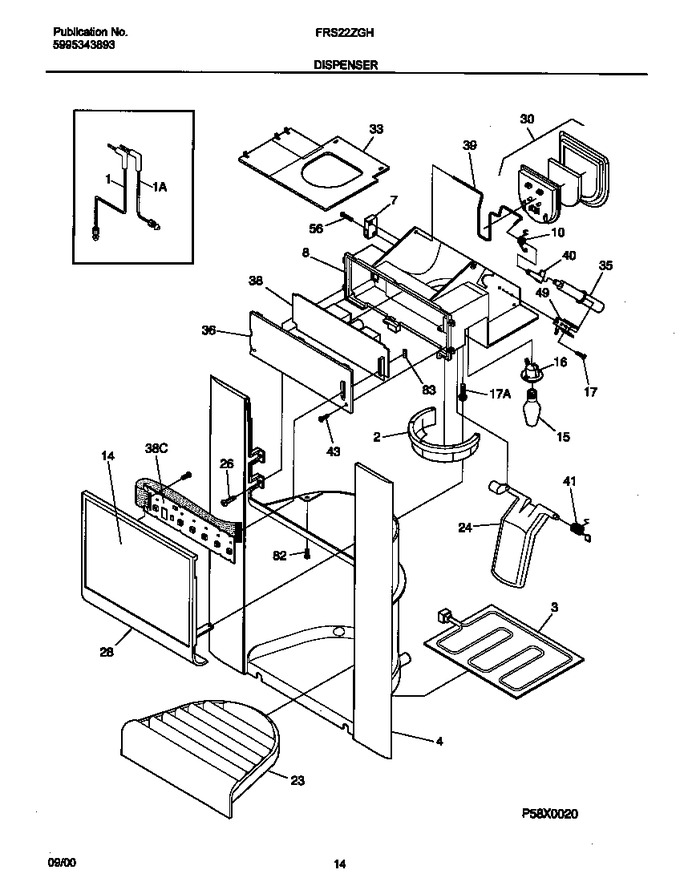

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218859901		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
1	218832301		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
2	218505303		Deflector-ice Disp, Black		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	218852403		Housing-dispenser,black		Appelez-nous	-
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	218874901		Module-dispenser		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
14	218903706		Label-module Cover,black		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	5303299660		Drip Tray, Black				$ 70.04
24	218921303		Actuator,black		Appelez-nous	-
26	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
28	218891403		Cover-selector,black				$ 59.35
30	215753600		Door Assy-ice Chute, W/gasket, Insul		Appelez-nous	-
33	218870201		Heater-disp Throat				$ 244.43
35	218740004		Heat Motor,115 V				$ 37.43
36	218891301		Cover-module				$ 26.94
38	218881801		Pc Board,control				$ 110.09
38	218906601		Pc Board,power		Appelez-nous	-
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215917800		Spring-actuator				$ 10.03
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
56	218434300		Screw-micro Switch, Pan Head, 4-24 X 9/16		Appelez-nous	-
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
83	5304412136		Fuse,pc Board ,7 A ,125 V				$ 57.44
*48444	5308010366		Tube-water Inlet, 0.25 Od X 93``, Plastic				$ 17.44
*48445	218949201		Tube-water Inlet,formed ,plastic ,dispenser		Appelez-nous	-
*48446	215781700		Clip-tube		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17B	215923400		Washer-flat		Appelez-nous	-
